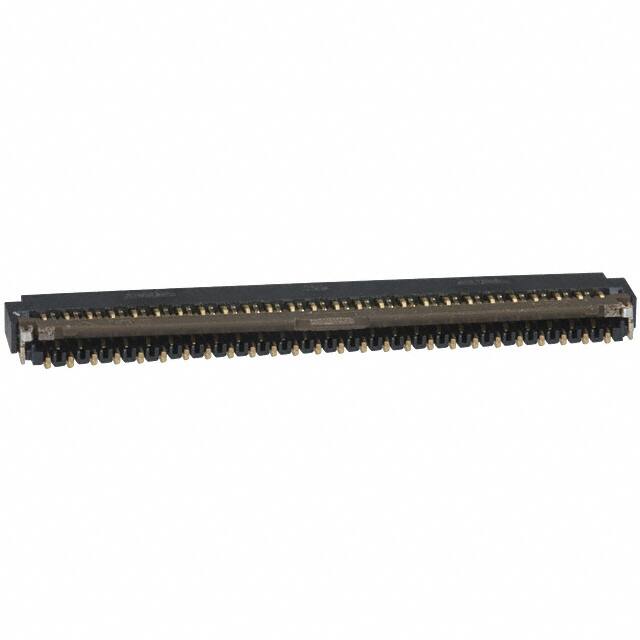

FH26W-51S-0.3SHW(60)

Teknik Özellikler

Nominal Gerilim

30V

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94-HB, 94V-0

Total Number Of Contacts

51

Din Conformance

NO

Flat Flex Type

FPC

Pozisyon Sayısı

51

Seri

FH26

Mixed Contacts

NO

Housing Material

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 HB

Housing Color

Black

Pitch

0.012 0.30mm

Flammability Rating

UL94 HB

Mating Cycles

10

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Actuator Material

Polyamide (PA), Nylon

Cable End Type

Tapered

Sıra Sayısı

1

Ffc Fcb Thickness

0.20mm

Current Rating Amps

0.2A

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Actuatorcolor

Brown

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~85°C

Özellikler

Zero Insertion Force (ZIF)

Height Above Board

0.039 1.00mm

Terminal

Solder

Akım Değeri

200mA

Mil Conformance

NO

Locking Feature

Flip Lock
