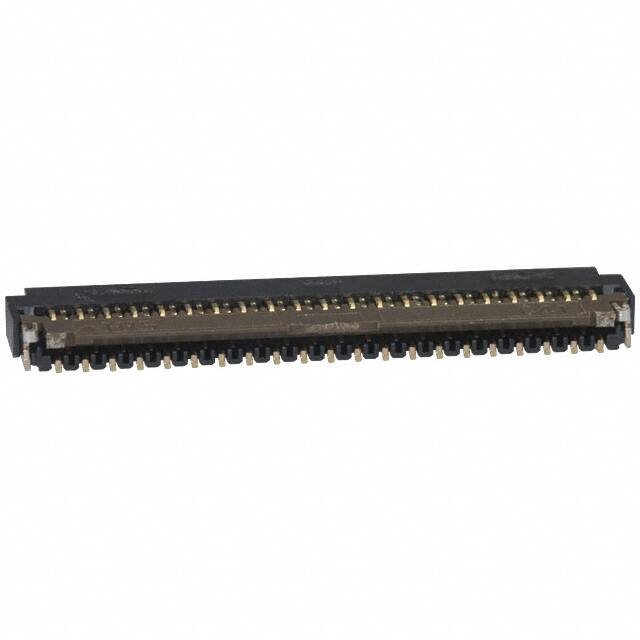

FH26W-41S-0.3SHW(60)

Teknik Özellikler

Height Above Board

0.039 1.00mm

Terminal

Solder

Mil Conformance

NO

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

HTS Kodu

8536.69.40.51

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Contact Gender

FEMALE

Özellikler

Zero Insertion Force (ZIF)

Mating Cycles

10

Actuator Material

Polyamide (PA), Nylon

Cable End Type

Tapered

Sıra Sayısı

1

Ffc Fcb Thickness

0.20mm

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.2A

ECCN Kodu

EAR99

Nominal Gerilim

30V

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94-HB, 94V-0

Total Number Of Contacts

41

Din Conformance

NO

Flat Flex Type

FPC

Pozisyon Sayısı

41

Seri

FH26

Housing Material

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Material Flammability Rating

UL94 HB

Pitch

0.012 0.30mm

Housing Color

Black
