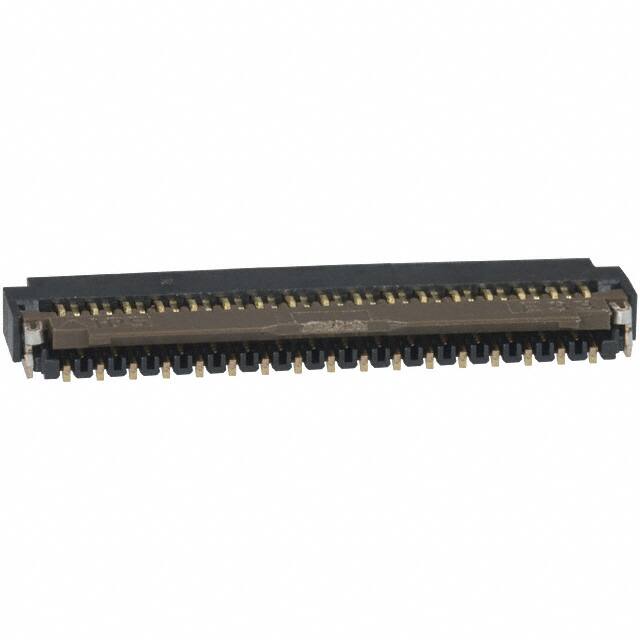

FH26W-33S-0.3SHW(60)

Teknik Özellikler

Mating Cycles

10

Flammability Rating

UL94 HB

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Ffc Fcb Thickness

0.20mm

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Polyamide (PA), Nylon

Current Rating Amps

0.2A

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

30V

Ul Flammability Code

94-HB, 94V-0

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Filter Feature

NO

Flat Flex Type

FPC

Pozisyon Sayısı

33

Seri

FH26

Total Number Of Contacts

33

Din Conformance

NO

Housing Color

Black

Pitch

0.012 0.30mm

Material Flammability Rating

UL94 HB

Housing Material

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Height Above Board

0.039 1.00mm

Terminal

Solder

Locking Feature

Flip Lock

Mil Conformance

NO

Akım Değeri

200mA

Option

GENERAL PURPOSE

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-55°C~85°C

Kurşunsuz Kodu

yes
