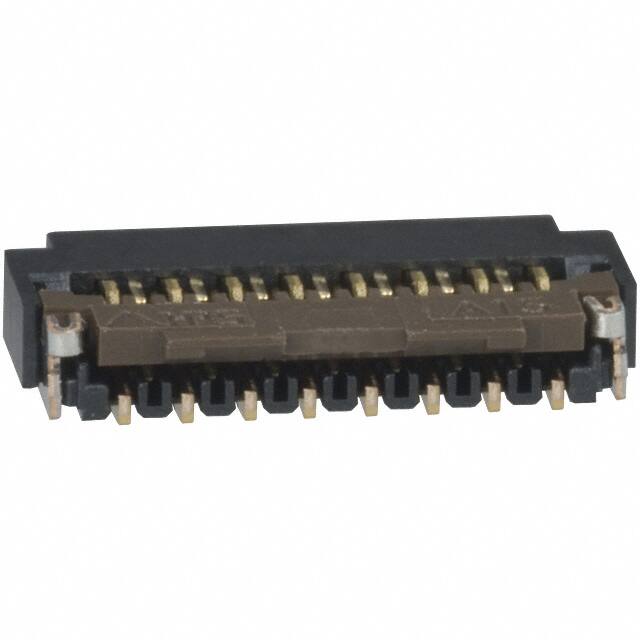

FH26W-15S-0.3SHW(60)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Kurşunsuz Kodu

yes

Özellikler

Zero Insertion Force (ZIF)

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Locking Feature

Flip Lock

Mil Conformance

NO

Akım Değeri

200mA

Option

GENERAL PURPOSE

Height Above Board

0.039 1.00mm

Terminal

Solder

Seri

FH26

Pozisyon Sayısı

15

Flat Flex Type

FPC

Din Conformance

NO

Total Number Of Contacts

15

Pitch

0.012 0.30mm

Housing Color

Black

Material Flammability Rating

UL94 HB

Housing Material

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Nominal Gerilim

30V

Ul Flammability Code

94-HB, 94V-0

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Ffc Fcb Thickness

0.20mm

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Polyamide (PA), Nylon

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.2A

Mating Cycles

10

Flammability Rating

UL94 HB
