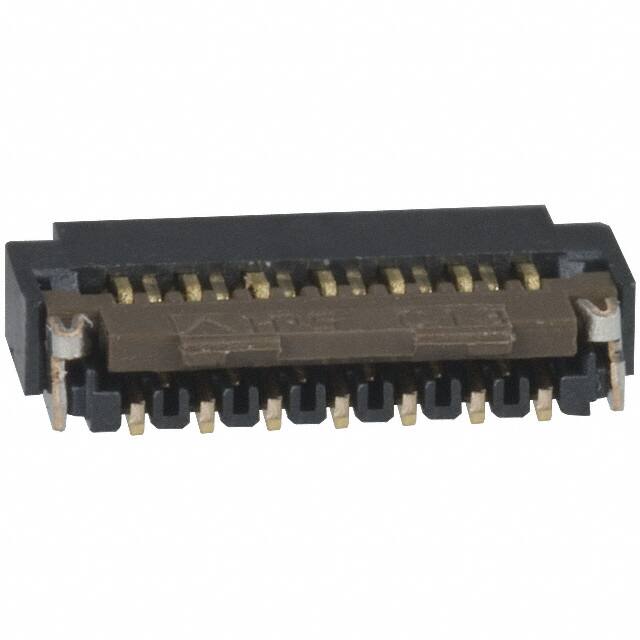

FH26W-13S-0.3SHW(60)

Teknik Özellikler

Actuator Material

Polyamide (PA), Nylon

Sıra Sayısı

1

Cable End Type

Tapered

Ffc Fcb Thickness

0.20mm

Current Rating Amps

0.2A

Fabrika Tedarik Süresi

10 Weeks

Flammability Rating

UL94 HB

Mating Cycles

10

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Din Conformance

NO

Total Number Of Contacts

13

Flat Flex Type

FPC

Seri

FH26

Pozisyon Sayısı

13

Housing Material

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Material Flammability Rating

UL94 HB

Pitch

0.012 0.30mm

Housing Color

Black

Nominal Gerilim

30V

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94-HB, 94V-0

Akım Değeri

200mA

Mil Conformance

NO

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

Height Above Board

0.039 1.00mm

Terminal

Solder

Actuatorcolor

Brown

Kurşunsuz Kodu

yes

Çalışma Sıcaklığı

-55°C~85°C

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

RoHS Durumu

RoHS Compliant
