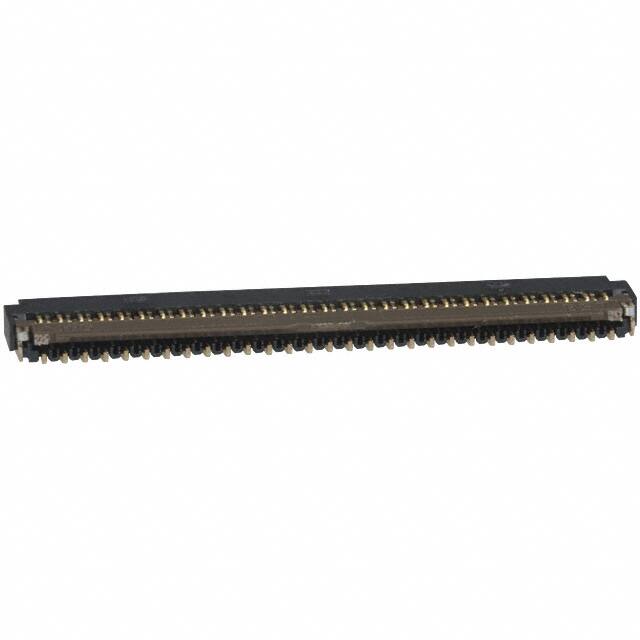

FH26-57S-0.3SHW(05)

Teknik Özellikler

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Body Breadth

0.039 inch

Pcb Contact Pattern

STAGGERED

Housing Color

Black

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP)

Seri

FH26

Pozisyon Sayısı

57

Flat Flex Type

FPC

Din Conformance

NO

ECCN Kodu

EAR99

Lead Pitch

300μm

Current Rating Amps

0.2A

Contact Pattern

RECTANGULAR

Cable End Type

Tapered

Sıra Sayısı

2

Actuator Material

Polyamide (PA), Nylon

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

HTS Kodu

8536.69.40.51

Reach Svhc

Unknown

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Orientation

Straight

Özellikler

Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Additional Feature

LOW PROFILE

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Reference Standard

UL

Akım Değeri

200mA

Withdrawl Forcemin

ZIF N

Parça Durumu

Obsolete

Nominal Gerilim

30V
