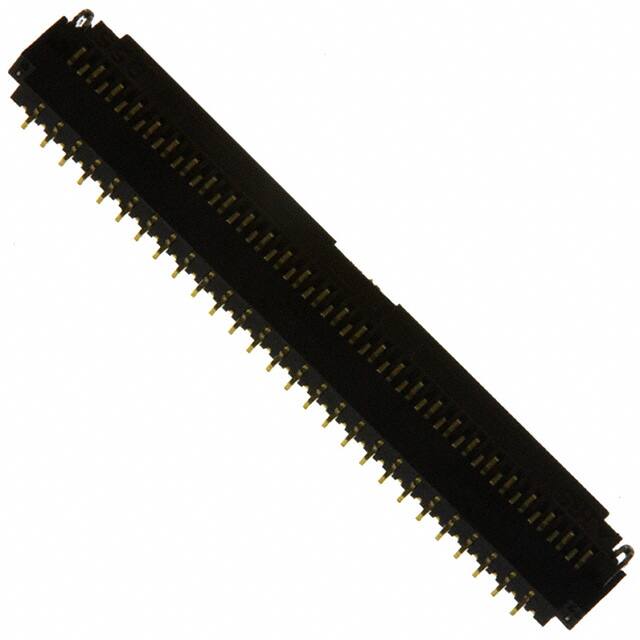

FH26-55S-0.3SHW(05)

Teknik Özellikler

Option

GENERAL PURPOSE

Locking Feature

Flip Lock

Mil Conformance

NO

Akım Değeri

200mA

Additional Feature

LOW PROFILE

Terminal

Solder

Height Above Board

0.039 1.00mm

Özellikler

Zero Insertion Force (ZIF)

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Kurşunsuz Kodu

yes

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Reach Svhc

Unknown

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Current Rating Amps

0.2A

Ffc Fcb Thickness

0.20mm

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Polyamide (PA), Nylon

Montaj

Surface Mount

Mating Cycles

10

Flammability Rating

UL94 V-0

Pitch

0.012 0.30mm

Housing Color

Black

Material Flammability Rating

UL94 V-0

Mixed Contacts

NO

Housing Material

Liquid Crystal Polymer (LCP)

Flat Flex Type

FPC

Pozisyon Sayısı

55

Seri

FH26

Din Conformance

NO

Total Number Of Contacts

55

Ul Flammability Code

94V-0

Parça Durumu

Obsolete

Filter Feature

NO
