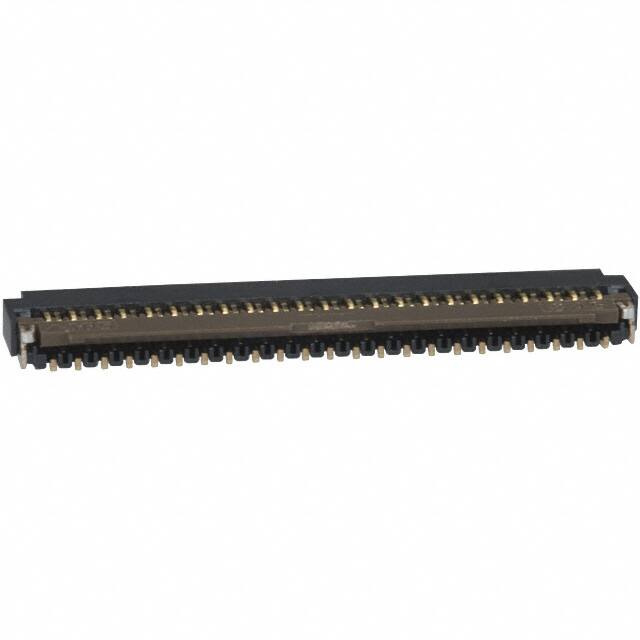

FH26-45S-0.3SHW(05)

Teknik Özellikler

Plating Thickness

FLASH inch

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Voltage Rated Ac

30V

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Terminal

Solder

Height Above Board

0.039 1.00mm

Mil Conformance

NO

Locking Feature

Flip Lock

Withdrawl Forcemin

ZIF N

Parça Durumu

Obsolete

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Pitch

0.012 0.30mm

Total Number Of Contacts

45

Uzunluk

15mm

Montaj

Surface Mount

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

10

Contact Resistance

100mOhm

Ffc Fcb Thickness

0.20mm

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Orientation

Straight

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Reach Svhc

No SVHC

Özellikler

Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Additional Feature

LOW PROFILE

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Reference Standard

UL
