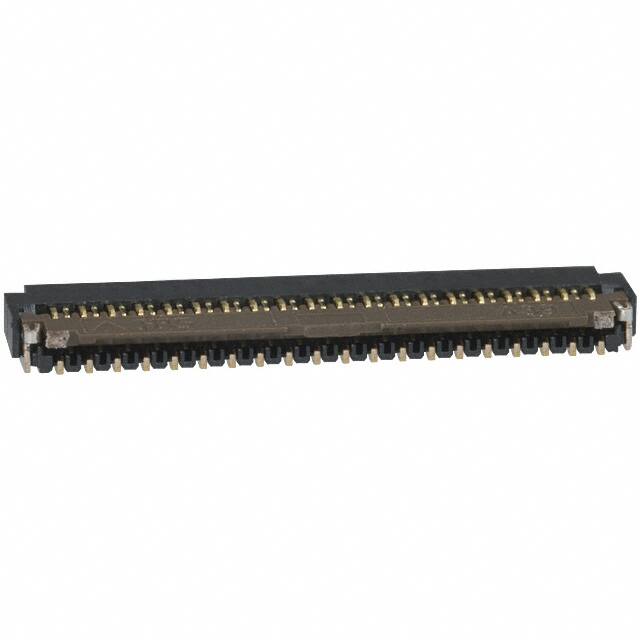

FH26-39S-0.3SHW(05)

Teknik Özellikler

Contact Pattern

RECTANGULAR

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Polyamide (PA), Nylon

ECCN Kodu

EAR99

Lead Pitch

300μm

Current Rating Amps

0.2A

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Pcb Contact Pattern

STAGGERED

Ul Flammability Code

94V-0

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Seri

FH26

Pozisyon Sayısı

39

Flat Flex Type

FPC

Din Conformance

NO

Housing Color

Black

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP)

Body Length Or Diameter

0.52 inch

Additional Feature

LOW PROFILE

Reference Standard

UL

Akım Değeri

200mA

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Reach Svhc

No SVHC

Contact Finish

Gold

Orientation

Straight

Contact Materials

Phosphor Bronze

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Özellikler

Zero Insertion Force (ZIF)

Mating Cycles

10

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

REACH Uyumluluk Kodu

unknown
