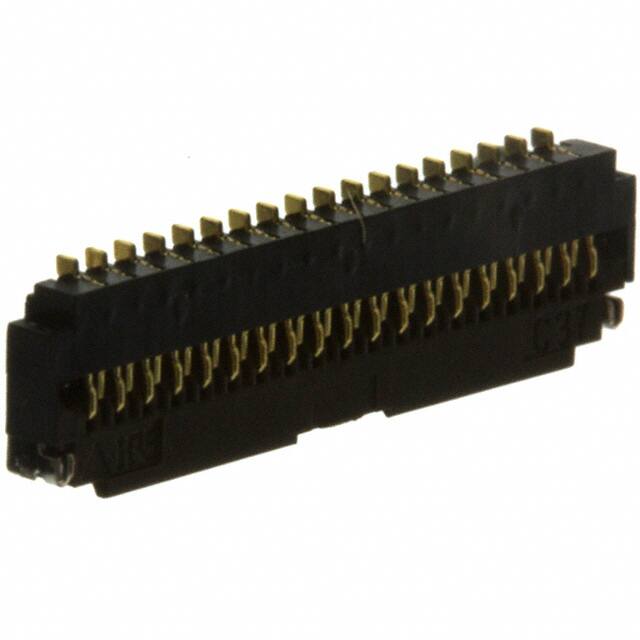

FH26-37S-0.3SHW(05)

Teknik Özellikler

Radyasyon Dayanımı

No

Özellikler

Zero Insertion Force (ZIF)

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Kurşunsuz Kodu

yes

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Gender

Receptacle

Ambalaj

Tape & Reel (TR)

HTS Kodu

8536.69.40.51

Reach Svhc

Unknown

Contact Finish

Gold

Orientation

Straight

Contact Materials

Phosphor Bronze

Option

GENERAL PURPOSE

Locking Feature

Flip Lock

Mil Conformance

NO

Akım Değeri

200mA

Terminal

Solder

Additional Feature

LOW PROFILE

Height Above Board

0.039 1.00mm

Housing Color

Black

Pitch

0.012 0.30mm

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP)

Mixed Contacts

NO

Flat Flex Type

FPC

Seri

FH26

Pozisyon Sayısı

37

Total Number Of Contacts

37

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Obsolete

Filter Feature

NO

JESD-609 Kodu

e4

Nominal Gerilim

30V

ECCN Kodu

EAR99

Current Rating Amps

0.2A
