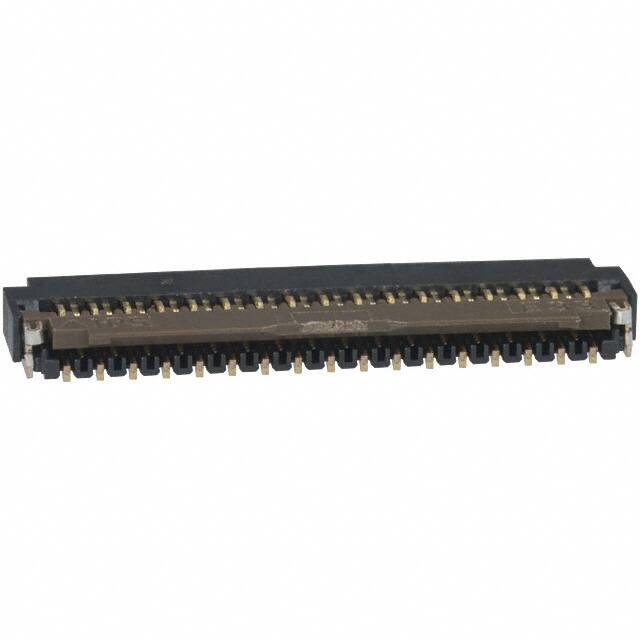

FH26-33S-0.3SHW(05)

Teknik Özellikler

Sıra Sayısı

2

Cable End Type

Tapered

Actuator Material

Polyamide (PA), Nylon

Contact Pattern

RECTANGULAR

Lead Pitch

300μm

ECCN Kodu

EAR99

Current Rating Amps

0.2A

Body Breadth

0.039 inch

Pcb Contact Pattern

STAGGERED

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Din Conformance

NO

Seri

FH26

Pozisyon Sayısı

33

Flat Flex Type

FPC

Housing Material

Liquid Crystal Polymer (LCP)

Housing Color

Black

Material Flammability Rating

UL94 V-0

Body Length Or Diameter

0.449 inch

Additional Feature

LOW PROFILE

Akım Değeri

200mA

Reference Standard

UL

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Contact Materials

Phosphor Bronze

Orientation

Straight

Reach Svhc

Unknown

Contact Finish

Gold

HTS Kodu

8536.69.40.51

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Özellikler

Zero Insertion Force (ZIF)

Mating Cycles

10

Flammability Rating

UL94 V-0
