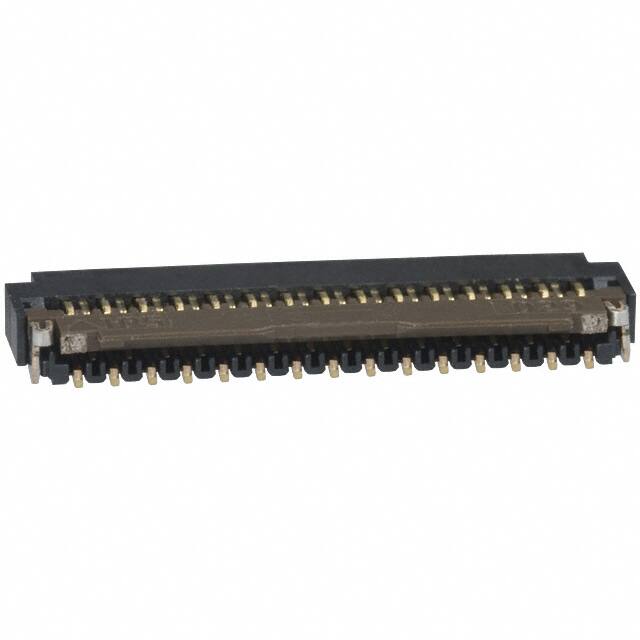

FH26-29S-0.3SHW(05)

Teknik Özellikler

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Insertion Forcemax

ZIF N

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Mil Conformance

NO

Locking Feature

Flip Lock

Height Above Board

0.039 1.00mm

Terminal

Solder

Total Number Of Contacts

29

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Pitch

0.012 0.30mm

Nominal Gerilim

30V

Withdrawl Forcemin

ZIF N

Parça Durumu

Obsolete

Pcb Contact Row Spacing

2.8448 mm

Ffc Fcb Thickness

0.20mm

Mating Cycles

10

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Contact Finish

Gold

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Reference Standard

UL

Akım Değeri

200mA

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Body Length Or Diameter

0.402 inch

Additional Feature

LOW PROFILE

Din Conformance

NO
