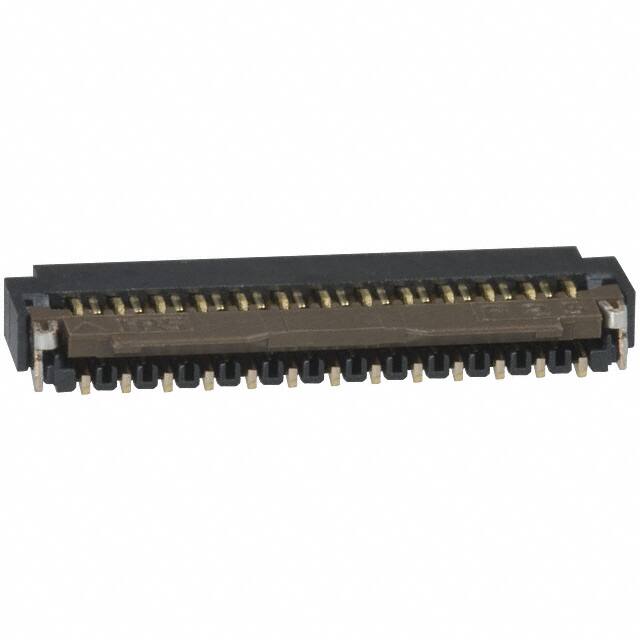

FH26-25S-0.3SHW(10)

Teknik Özellikler

Mixed Contacts

NO

Insulation Resistance

50MOhm

Pitch

0.012 0.30mm

Total Number Of Contacts

25

Withdrawl Forcemin

ZIF N

Parça Durumu

Obsolete

Nominal Gerilim

30V

Ffc Fcb Thickness

0.20mm

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Mating Cycles

10

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Contact Gender

FEMALE

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Insertion Forcemax

ZIF N

Mil Conformance

NO

Locking Feature

Flip Lock

Terminal

Solder

Height Above Board

0.039 1.00mm

Housing Material

Liquid Crystal Polymer (LCP)

Housing Color

Black

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Seri

FH26

Pozisyon Sayısı

25

Flat Flex Type

FPC

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Pcb Contact Pattern

STAGGERED

JESD-609 Kodu

e4

Current Rating Amps

0.2A

Sıra Sayısı

2

Cable End Type

Tapered

Actuator Material

Polyamide (PA), Nylon

Contact Pattern

RECTANGULAR
