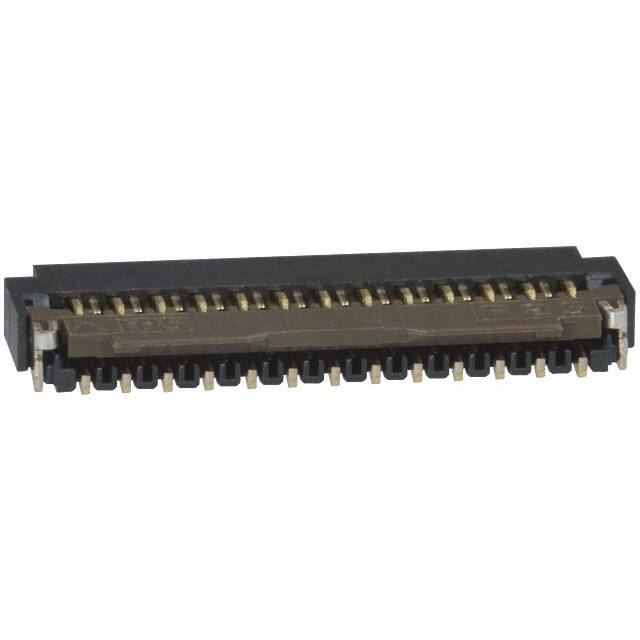

FH26-25S-0.3SHW(05)

Teknik Özellikler

Din Conformance

NO

Seri

FH26

Pozisyon Sayısı

25

Flat Flex Type

FPC

Max Voltage Rating Ac

30V

Housing Material

Liquid Crystal Polymer (LCP)

Housing Color

Black

Material Flammability Rating

UL94 V-0

Body Breadth

0.039 inch

Pcb Contact Pattern

STAGGERED

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Sıra Sayısı

2

Cable End Type

Tapered

Actuator Material

Polyamide (PA), Nylon

Contact Pattern

RECTANGULAR

Lead Pitch

300μm

ECCN Kodu

EAR99

Current Rating Amps

0.2A

Depth

3.2mm

Max Current Rating

200mA

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Özellikler

Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Orientation

Straight

Reach Svhc

No SVHC

Contact Finish

Gold

Genişlik

3.2mm

HTS Kodu

8536.69.40.51

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Akım Değeri

200mA

Reference Standard

UL

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE
