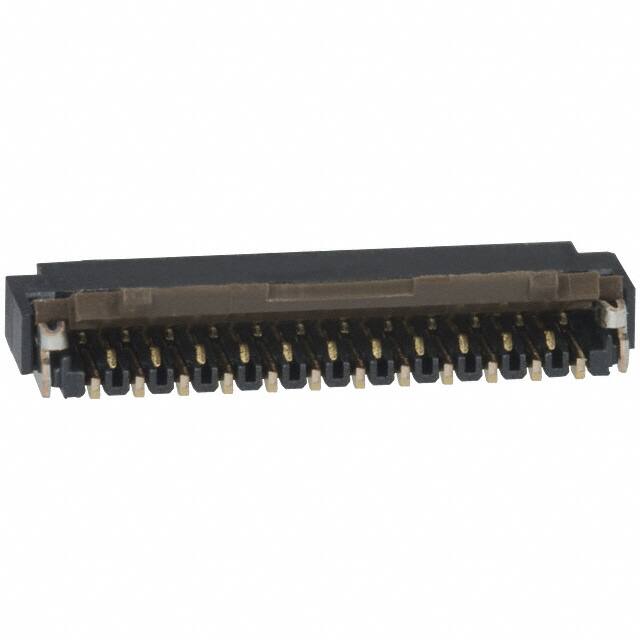

FH26-23S-0.3SHW(05)

Teknik Özellikler

Seri

FH26

Pozisyon Sayısı

23

Flat Flex Type

FPC

Din Conformance

NO

Housing Color

Black

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP)

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Body Breadth

0.039 inch

Pcb Contact Pattern

STAGGERED

Ul Flammability Code

94V-0

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Contact Pattern

RECTANGULAR

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Polyamide (PA), Nylon

Lead Pitch

300μm

Current Rating Amps

0.2A

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Özellikler

Zero Insertion Force (ZIF)

Reach Svhc

No SVHC

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Reference Standard

UL

Akım Değeri

200mA

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Additional Feature

LOW PROFILE

Total Number Of Contacts

23

Pitch

0.012 0.30mm

Mixed Contacts

NO

Insulation Resistance

50000000Ohm

Nominal Gerilim

30V

Pcb Contact Row Spacing

2.794 mm
