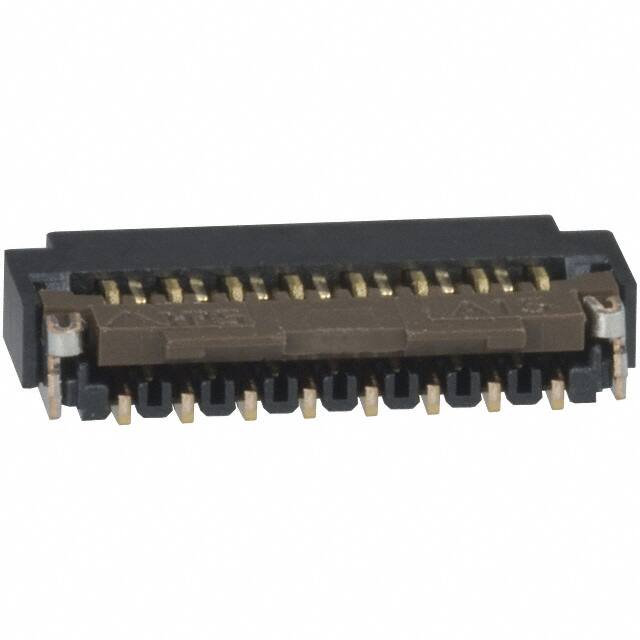

FH26-15S-0.3SHW(05)

Teknik Özellikler

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Terminal

Solder

Height Above Board

0.039 1.00mm

Mil Conformance

NO

Locking Feature

Flip Lock

Parça Durumu

Obsolete

Nominal Gerilim

30V

Mixed Contacts

NO

Pitch

0.012 0.30mm

Total Number Of Contacts

15

Montaj

Surface Mount

Mating Cycles

10

Flammability Rating

UL94 V-0

Ffc Fcb Thickness

0.20mm

HTS Kodu

8536.69.40.51

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Contact Materials

Phosphor Bronze

Orientation

Straight

Reach Svhc

No SVHC

Contact Finish

Gold

Radyasyon Dayanımı

No

Özellikler

Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Additional Feature

LOW PROFILE

Option

GENERAL PURPOSE

Akım Değeri

200mA

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Housing Material

Liquid Crystal Polymer (LCP)

Housing Color

Black

Material Flammability Rating

UL94 V-0

Din Conformance

NO
