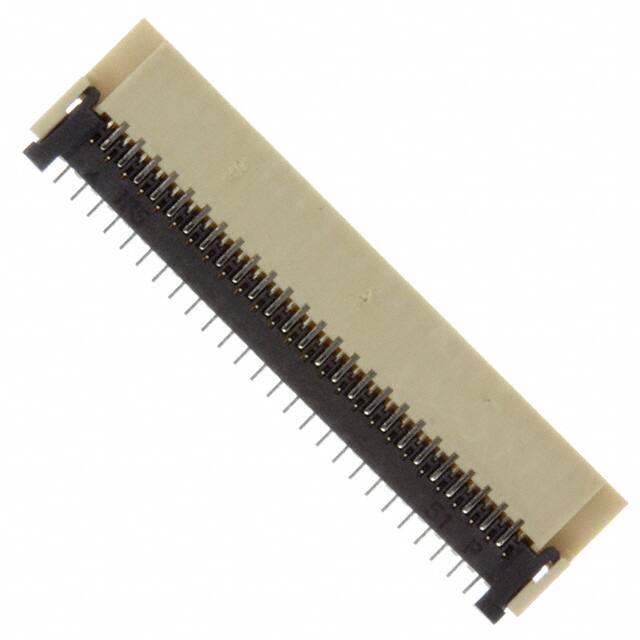

FH23-51S-0.3SHAW(06)

Teknik Özellikler

Max Current Rating

300mA

Actuator Material

Liquid Crystal Polymer (LCP)

Cable End Type

Tapered

Sıra Sayısı

1

Contact Pattern

STAGGERED

Current Rating Amps

0.3A

ECCN Kodu

EAR99

Depth

5.2mm

Pcb Contact Pattern

STAGGERED

Dielectric Withstanding Voltage

90VAC V

JESD-609 Kodu

e4

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Din Conformance

NO

Mating Information

NO

Flat Flex Type

FPC

Pozisyon Sayısı

51

Seri

FH23

Housing Material

Liquid Crystal Polymer (LCP)

Max Voltage Rating Ac

30V

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Reference Standard

UL

Akım Değeri

300mA

Option

GENERAL PURPOSE

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Reach Svhc

No SVHC

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Özellikler

Low Insertion Force (LIF)

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Mating Cycles

10

Montaj

Surface Mount
