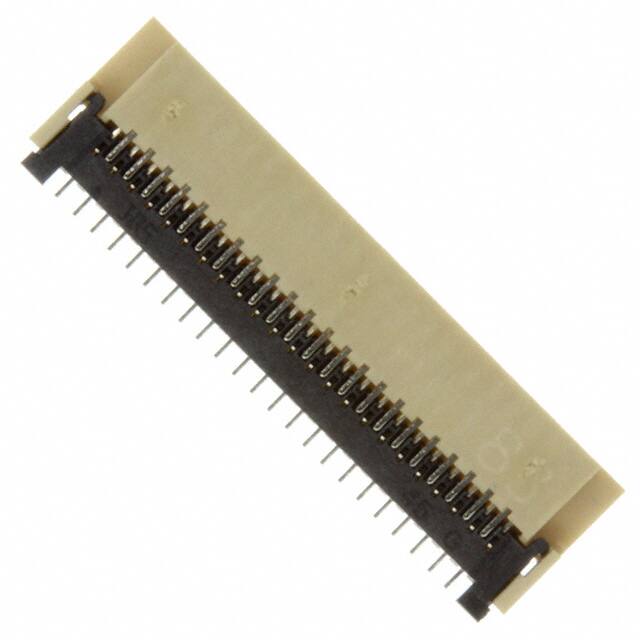

FH23-45S-0.3SHAW(05)

Teknik Özellikler

Radyasyon Dayanımı

No

Özellikler

Low Insertion Force (LIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Reach Svhc

Unknown

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Option

GENERAL PURPOSE

Reference Standard

UL

Akım Değeri

300mA

Additional Feature

STAGGERED CONFIGURATION, LIF, ZIF

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Seri

FH23

Pozisyon Sayısı

45

Flat Flex Type

FPC

Mating Information

NO

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Pcb Contact Pattern

STAGGERED

Lead Pitch

300μm

Current Rating Amps

0.3A

Contact Pattern

STAGGERED

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free
