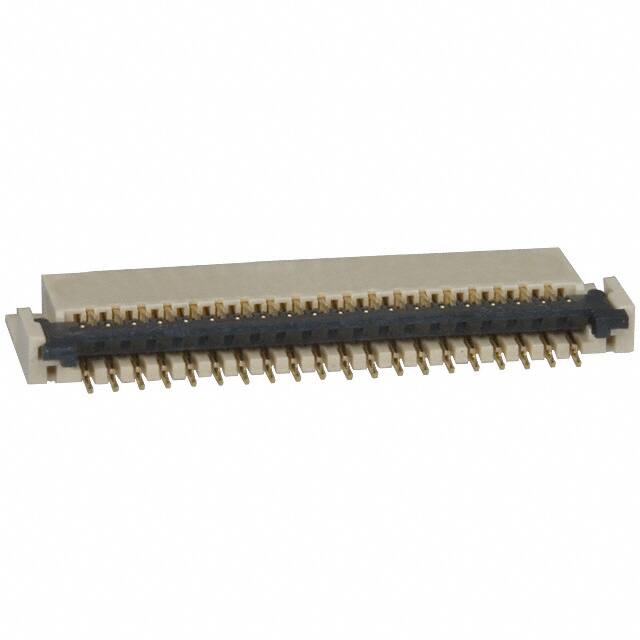

FH23-39S-0.3SHAW(05)

Teknik Özellikler

Ffc Fcb Thickness

0.20mm

Fabrika Tedarik Süresi

10 Weeks

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

10

Montaj

Surface Mount

Total Number Of Contacts

39

Pitch

0.012 0.30mm

Mixed Contacts

NO

Insulation Resistance

50000000Ohm

Parça Durumu

Active

Locking Feature

Flip Lock

Mil Conformance

NO

Height Above Board

0.049 1.25mm

Terminal

Solder

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

Voltage Rated Ac

30V

Insertion Forcemax

LIF N

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Contact Pattern

STAGGERED

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Sıra Sayısı

1

Cable End Type

Tapered

Current Rating Amps

0.3A

Lead Pitch

300μm

ECCN Kodu

EAR99

Mating Information

NO

Seri

FH23

Pozisyon Sayısı

39

Flat Flex Type

FPC

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Dielectric Withstanding Voltage

90VAC V

JESD-609 Kodu

e4

Pcb Contact Pattern

STAGGERED
