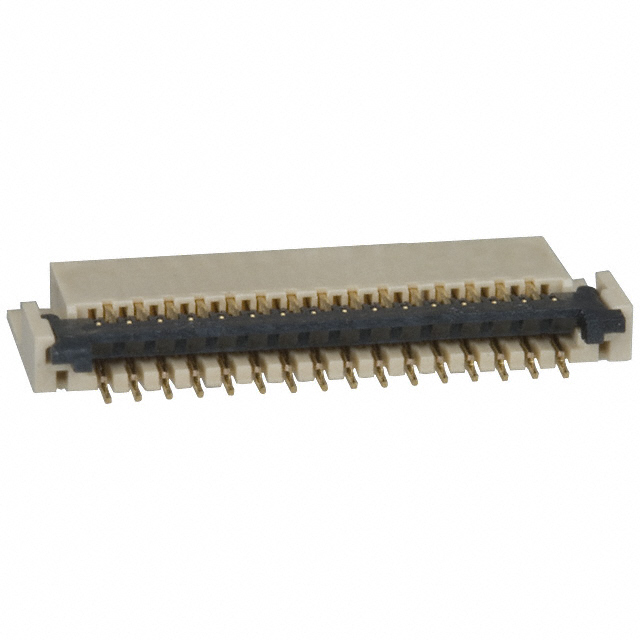

FH23-31S-0.3SHAW(05)

Teknik Özellikler

Height Above Board

0.049 1.25mm

Terminal

Solder

Locking Feature

Flip Lock

Mil Conformance

NO

Insertion Forcemax

LIF N

RoHS Durumu

RoHS Compliant

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

Mating Cycles

10

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Montaj

Surface Mount

Ffc Fcb Thickness

0.20mm

Fabrika Tedarik Süresi

10 Weeks

Nominal Gerilim

30V

Parça Durumu

Active

Total Number Of Contacts

31

Pitch

0.012 0.30mm

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Additional Feature

STAGGERED CONFIGURATION, LIF, ZIF

Reference Standard

UL

Akım Değeri

300mA

Option

GENERAL PURPOSE

Reach Svhc

Unknown

Genişlik

4.7mm

Contact Finish

Gold

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Radyasyon Dayanımı

No

Özellikler

Low Insertion Force (LIF)

Contact Pattern

STAGGERED

Sıra Sayısı

1
