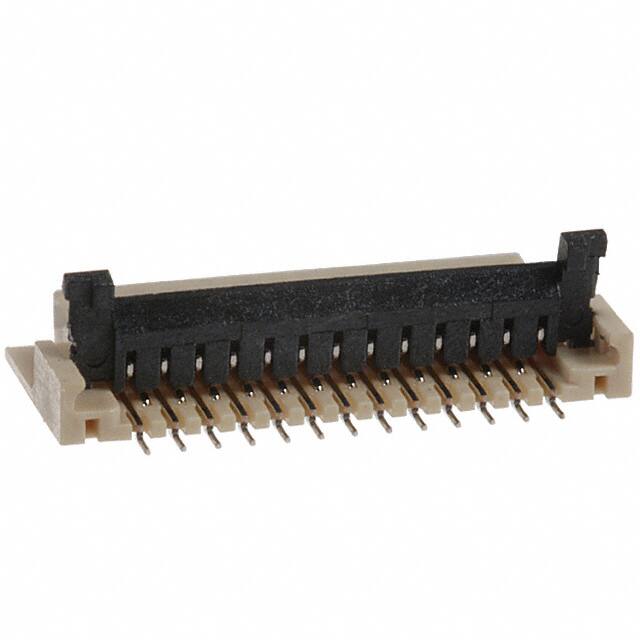

FH23-25S-0.3SHAW(05)

Teknik Özellikler

Contact Pattern

STAGGERED

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Sıra Sayısı

1

Cable End Type

Tapered

Current Rating Amps

0.3A

Mating Information

NO

Seri

FH23

Pozisyon Sayısı

25

Flat Flex Type

FPC

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Dielectric Withstanding Voltage

90VAC V

JESD-609 Kodu

e4

Pcb Contact Pattern

STAGGERED

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Akım Değeri

300mA

Reference Standard

UL

Option

GENERAL PURPOSE

Additional Feature

STAGGERED CONFIGURATION, LIF, ZIF

Number Of Pcb Rows

2

Kurşunsuz Kodu

yes

Özellikler

Low Insertion Force (LIF)

Radyasyon Dayanımı

No

Contact Finish

Gold

Reach Svhc

No SVHC

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ffc Fcb Thickness

0.20mm

Fabrika Tedarik Süresi

10 Weeks

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

10

Montaj

Surface Mount
