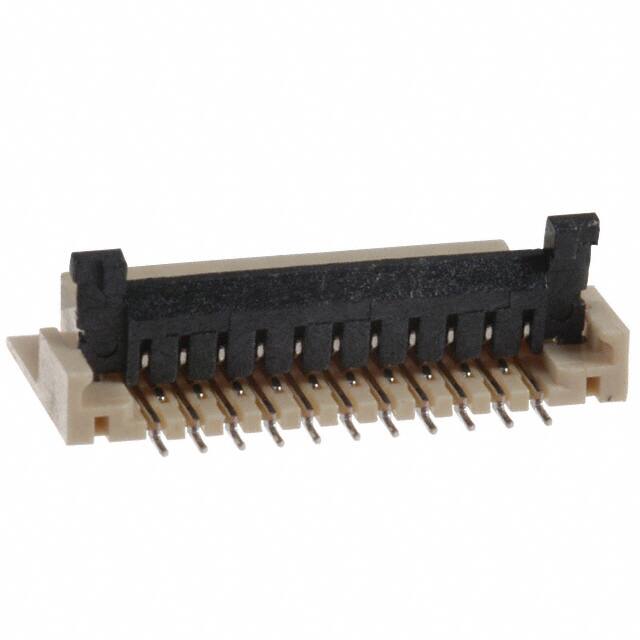

FH23-21S-0.3SHAW(05)

Teknik Özellikler

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

HTS Kodu

8536.69.40.51

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Özellikler

Low Insertion Force (LIF)

Additional Feature

STAGGERED CONFIGURATION, LIF, ZIF

Reference Standard

UL

Akım Değeri

300mA

Option

GENERAL PURPOSE

Dielectric Withstanding Voltage

90VAC V

Pcb Contact Pattern

STAGGERED

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Seri

FH23

Pozisyon Sayısı

21

Flat Flex Type

FPC

Mating Information

NO

Din Conformance

NO

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Contact Pattern

STAGGERED

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

ECCN Kodu

EAR99

Current Rating Amps

0.3A

Insertion Forcemax

LIF N

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Çalışma Sıcaklığı

-55°C~85°C

Contact Gender

FEMALE

Actuatorcolor

Black

Height Above Board

0.049 1.25mm

Terminal

Solder

Locking Feature

Flip Lock
