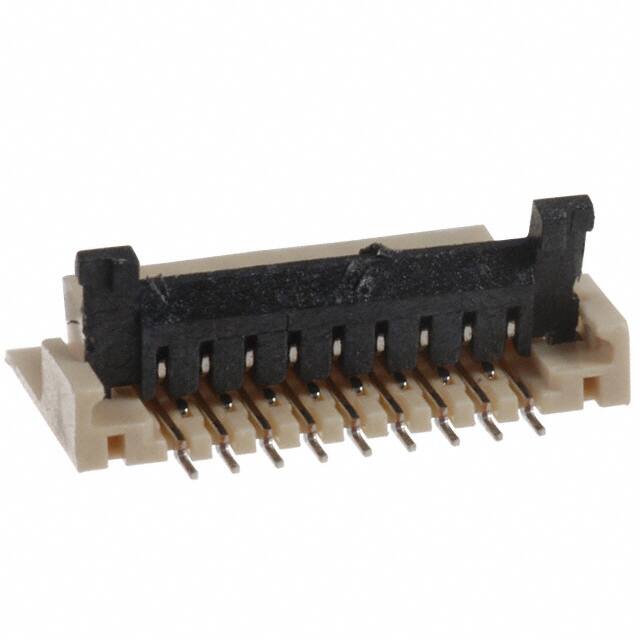

FH23-17S-0.3SHAW(05)

Teknik Özellikler

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e4

Dielectric Withstanding Voltage

90VAC V

Pcb Contact Pattern

STAGGERED

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Seri

FH23

Pozisyon Sayısı

17

Flat Flex Type

FPC

Mating Information

NO

Din Conformance

NO

Lead Pitch

300μm

Current Rating Amps

0.3A

Contact Pattern

STAGGERED

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Halogen Free

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Finish

Gold

Genişlik

4.7mm

Contact Materials

Phosphor Bronze

Özellikler

Low Insertion Force (LIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

2

Additional Feature

STAGGERED CONFIGURATION, LIF, ZIF

Option

GENERAL PURPOSE

Reference Standard

UL

Akım Değeri

300mA

Parça Durumu

Active

Nominal Gerilim

30V

Pitch

0.012 0.30mm

Mixed Contacts

NO

Insulation Resistance

50000000Ohm

Total Number Of Contacts

17

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount
