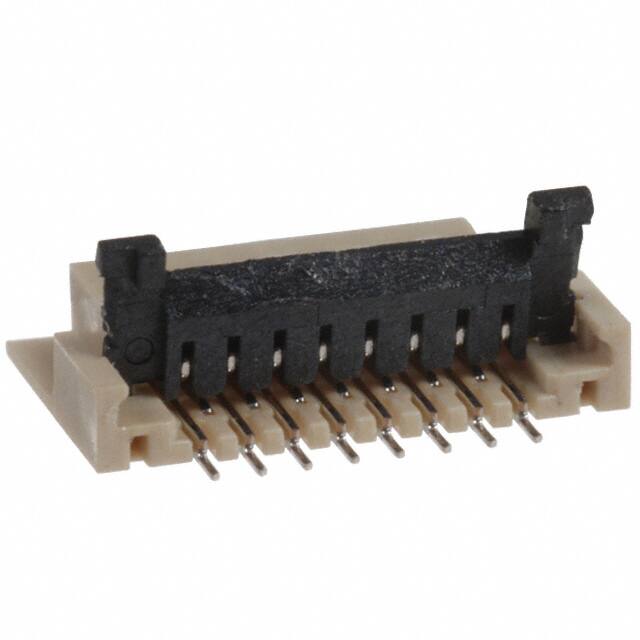

FH23-15S-0.3SHAW(05)

Teknik Özellikler

Insulation Resistance

50000000Ohm

Mixed Contacts

NO

Pitch

0.012 0.30mm

Total Number Of Contacts

15

Parça Durumu

Active

Nominal Gerilim

30V

Fabrika Tedarik Süresi

10 Weeks

Ffc Fcb Thickness

0.20mm

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Mating Cycles

10

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Actuatorcolor

Black

Contact Gender

FEMALE

Çalışma Sıcaklığı

-55°C~85°C

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Insertion Forcemax

LIF N

Mil Conformance

NO

Locking Feature

Flip Lock

Terminal

Solder

Height Above Board

0.049 1.25mm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Flat Flex Type

FPC

Pozisyon Sayısı

15

Seri

FH23

Mating Information

NO

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Pcb Contact Pattern

STAGGERED

Dielectric Withstanding Voltage

90VAC V

Lead Pitch

300μm

Current Rating Amps

0.3A

Sıra Sayısı

1
