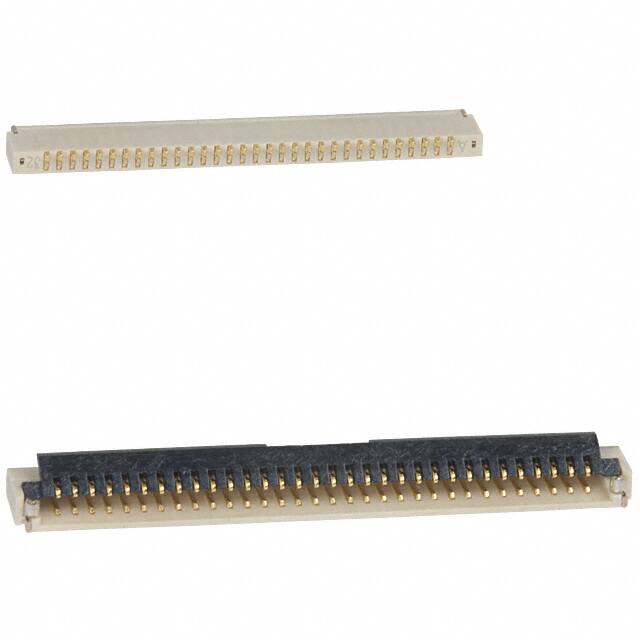

FH19SC-32S-0.5SH(99)

Teknik Özellikler

Contact Resistance

100mOhm

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

Ffc Fcb Thickness

0.30mm

Contact Pattern

RECTANGULAR

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Body Depth

0.138 inch

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Mating Cycles

20

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Housing Color

Beige

Pitch

0.020 0.50mm

Material Flammability Rating

UL94 V-0

Insulation Resistance

500000000Ohm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

32

Seri

FH19SC

Total Number Of Contacts

32

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Nominal Gerilim

50V

Body Breadth

0.004 inch

Pcb Contact Pattern

RECTANGULAR

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock

Reference Standard

UL

Akım Değeri

500mA

Terminal

Solder

Body Length Or Diameter

0.709 inch

Height Above Board

0.037 0.95mm

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

Number Of Pcb Rows

1
