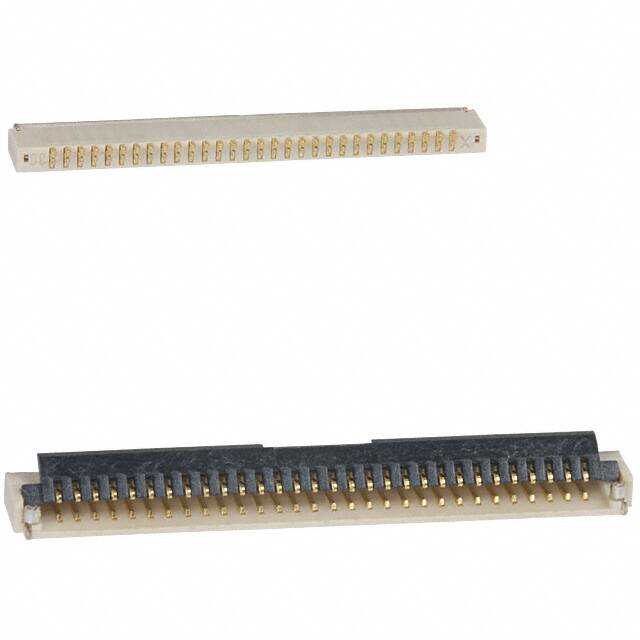

FH19SC-30S-0.5SH(05)

Teknik Özellikler

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Max Voltage Rating Ac

50V

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

30

Seri

FH19SC

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e4

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.037 inch

Depth

3.5mm

Current Rating Amps

0.5A

Lead Pitch

500μm

ECCN Kodu

EAR99

Contact Pattern

RECTANGULAR

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Cable End Type

Tapered

Sıra Sayısı

1

Max Current Rating

500mA

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Number Of Pcb Rows

1

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish

Gold

Reach Svhc

No SVHC

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Reference Standard

UL

Akım Değeri

500mA

Additional Feature

ZIF, LOW PROFILE

Pitch

0.020 0.50mm

Mixed Contacts

NO
