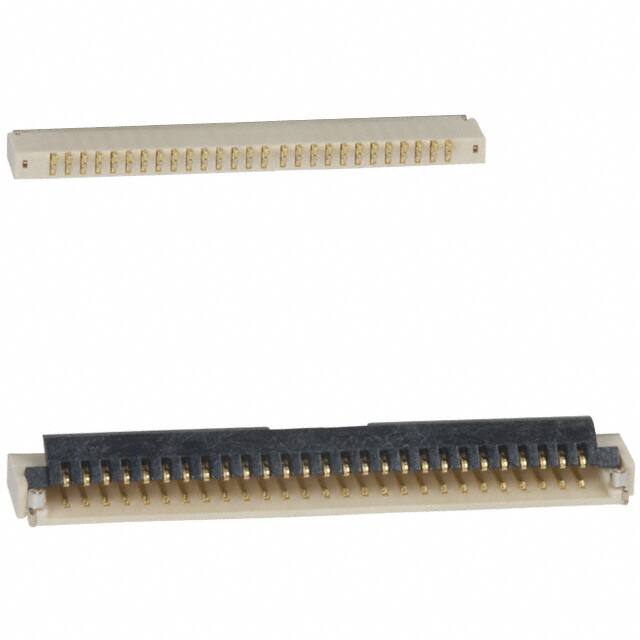

FH19SC-27S-0.5SH(09)

Teknik Özellikler

Total Number Of Contacts

27

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

27

Seri

FH19SC

Insulation Resistance

500MOhm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Mixed Contacts

NO

Housing Color

Beige

Pitch

0.020 0.50mm

Material Flammability Rating

UL94 V-0

JESD-609 Kodu

e4

Nominal Gerilim

50V

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Filter Feature

NO

Ul Flammability Code

94V-0

Manufacturer Package Identifier

FH19SC-27S-0.5SH(09)

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Ffc Fcb Thickness

0.30mm

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

10 Weeks

Mating Cycles

20

Flammability Rating

UL94 V-0

Wirecable Type

Flat Flex

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Actuatorcolor

Black

Çalışma Sıcaklığı

-55°C~85°C

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Materials

Phosphor Bronze

Connector Type

FFC/FPC CONNECTOR

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Gender

Receptacle
