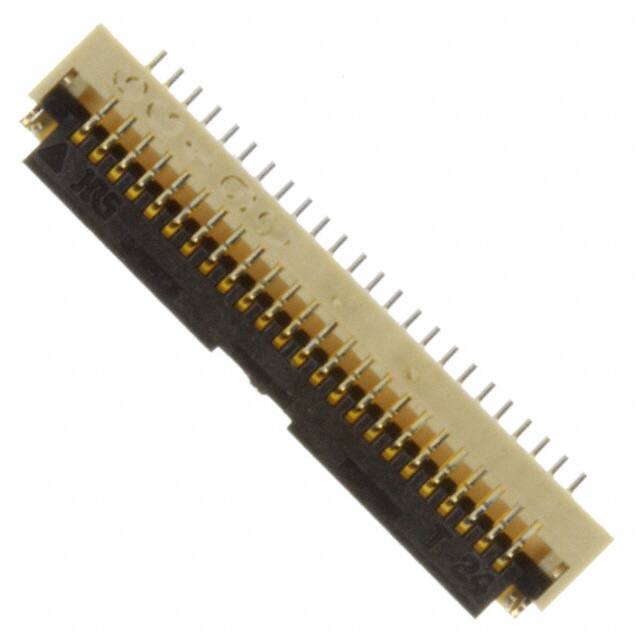

FH19SC-24S-0.5SH(05)

Teknik Özellikler

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

Voltage Rated Ac

50V

RoHS Durumu

RoHS Compliant

Plating Thickness

FLASH inch

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Insertion Forcemax

ZIF N

Connector Type

FFC/FPC CONNECTOR

Locking Feature

Flip Lock

Mil Conformance

NO

Terminal

Solder

Height Above Board

0.037 0.95mm

Pitch

0.020 0.50mm

Mixed Contacts

NO

Insulation Resistance

100MOhm

Total Number Of Contacts

24

Uzunluk

14mm

Parça Durumu

Obsolete

Withdrawl Forcemin

ZIF N

Contact Resistance

100mOhm

Ffc Fcb Thickness

0.30mm

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Mating Cycles

20

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Number Of Pcb Rows

1

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Finish

Gold

Reach Svhc

No SVHC

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Contact Style

SINGLE PRONG

Option

GENERAL PURPOSE

Reference Standard

UL

Akım Değeri

500mA
