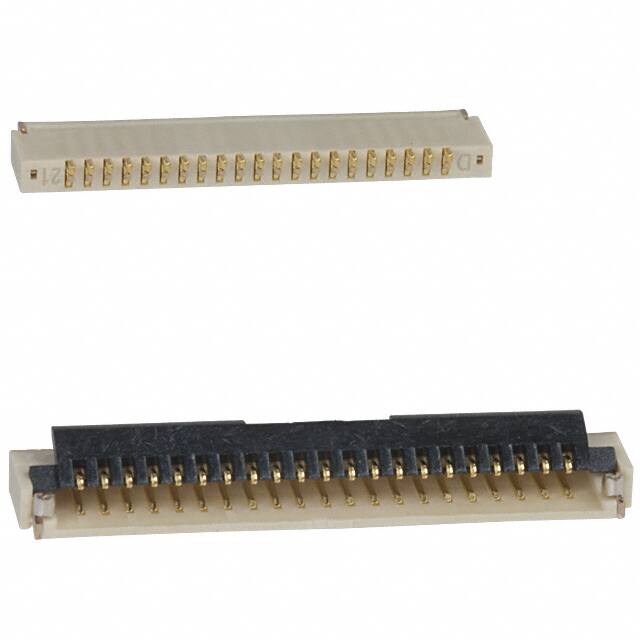

FH19SC-21S-0.5SH(05)

Teknik Özellikler

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

RoHS Durumu

RoHS Compliant

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Kurşunsuz

Lead Free

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Reach Svhc

No SVHC

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Option

GENERAL PURPOSE

Locking Feature

Flip Lock

Akım Değeri

500mA

Mil Conformance

NO

Terminal

Solder

Additional Feature

ZIF, LOW PROFILE

Height Above Board

0.037 0.95mm

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pitch

0.020 0.50mm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Mixed Contacts

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

21

Seri

FH19SC

Total Number Of Contacts

21

Din Conformance

NO

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Obsolete

Filter Feature

NO

Nominal Gerilim

50V

JESD-609 Kodu

e4

Current Rating Amps

0.5A

Lead Pitch

500μm
