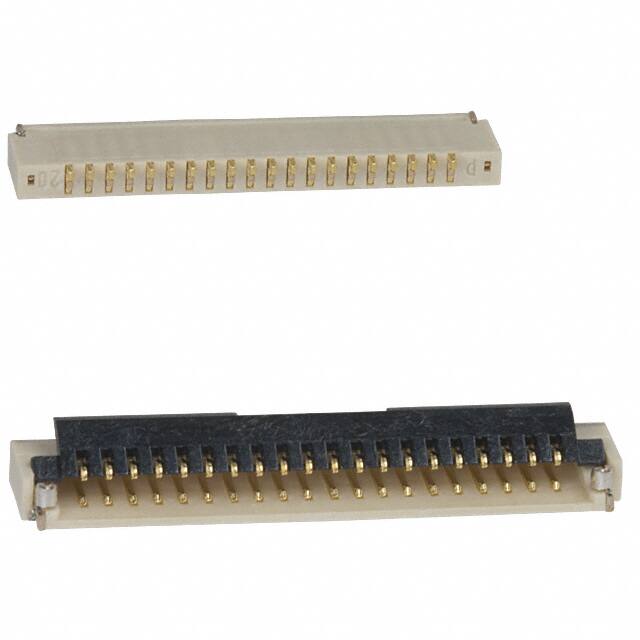

FH19SC-20S-0.5SH(09)

Teknik Özellikler

Contact Materials

Phosphor Bronze

Connector Type

FFC/FPC CONNECTOR

Contact Finish

Gold

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

RoHS Durumu

RoHS Compliant

Gender

Receptacle

Actuatorcolor

Black

Çalışma Sıcaklığı

-55°C~85°C

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Height Above Board

0.037 0.95mm

Terminal

Solder

Additional Feature

ZIF, LOW PROFILE

Mil Conformance

NO

Akım Değeri

500mA

Locking Feature

Flip Lock

Option

GENERAL PURPOSE

JESD-609 Kodu

e4

Nominal Gerilim

50V

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Filter Feature

NO

Ul Flammability Code

94V-0

Total Number Of Contacts

20

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

20

Seri

FH19SC

Mixed Contacts

NO

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Insulation Resistance

500MOhm

Pitch

0.020 0.50mm

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Flammability Rating

UL94 V-0

Wirecable Type

Flat Flex

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Cable End Type

Tapered
