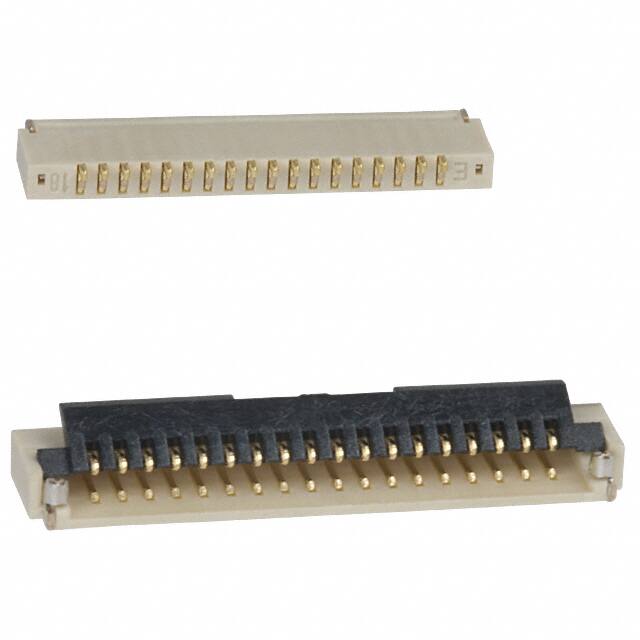

FH19SC-18S-0.5SH(05)

Teknik Özellikler

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Contact Pattern

RECTANGULAR

Lead Pitch

500μm

Current Rating Amps

0.5A

Depth

3.5mm

Max Current Rating

500mA

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

18

Seri

FH19SC

Max Voltage Rating Ac

50V

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Body Breadth

0.037 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e4

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Reference Standard

UL

Akım Değeri

500mA

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Additional Feature

ZIF, LOW PROFILE

Number Of Pcb Rows

1

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Reach Svhc

No SVHC

Contact Finish

Gold

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Ffc Fcb Thickness

0.30mm

Contact Resistance

100mOhm

Mating Cycles

20

Flammability Rating

UL94 V-0
