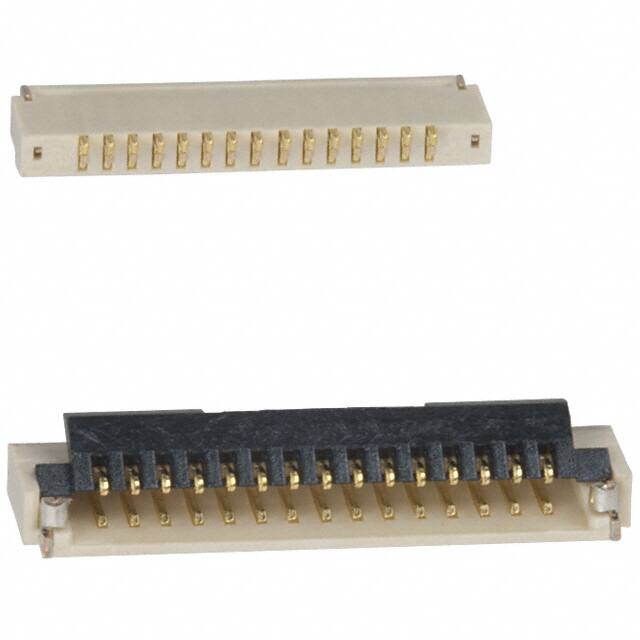

FH19SC-15S-0.5SH(09)

Teknik Özellikler

Option

GENERAL PURPOSE

Mil Conformance

NO

Akım Değeri

500mA

Locking Feature

Flip Lock

Additional Feature

ZIF, LOW PROFILE

Terminal

Solder

Height Above Board

0.037 0.95mm

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Actuatorcolor

Black

Çalışma Sıcaklığı

-55°C~85°C

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Contact Materials

Phosphor Bronze

Connector Type

FFC/FPC CONNECTOR

Contact Finish

Gold

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Ffc Fcb Thickness

0.30mm

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Mating Cycles

20

Wirecable Type

Flat Flex

Flammability Rating

UL94 V-0

Insulation Resistance

500MOhm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Mixed Contacts

NO

Housing Color

Beige

Pitch

0.020 0.50mm

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

15

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

15

Seri

FH19SC
