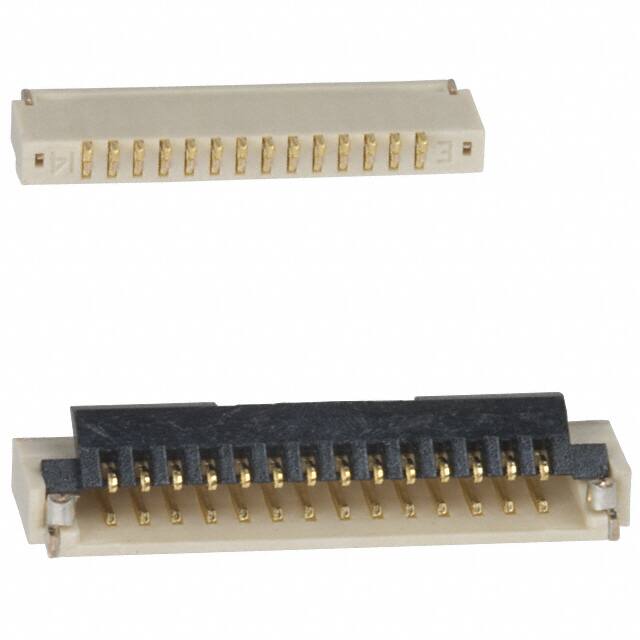

FH19SC-14S-0.5SH(99)

Teknik Özellikler

Number Of Pcb Rows

1

Actuatorcolor

Black

Çalışma Sıcaklığı

-55°C~85°C

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze

Contact Finish

Gold

HTS Kodu

8536.69.40.40

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Akım Değeri

500mA

Reference Standard

UL

Locking Feature

Flip Lock

Contact Style

BELLOWED TYPE

Height Above Board

0.037 0.95mm

Body Length Or Diameter

0.354 inch

Terminal

Solder

Total Number Of Contacts

14

Flat Flex Type

FFC, FPC

Seri

FH19SC

Pozisyon Sayısı

14

Insulation Resistance

500000000Ohm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Material Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm

Housing Color

Beige

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.004 inch

Nominal Gerilim

50V

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Tapered

Contact Pattern

RECTANGULAR

Ffc Fcb Thickness

0.30mm

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A
