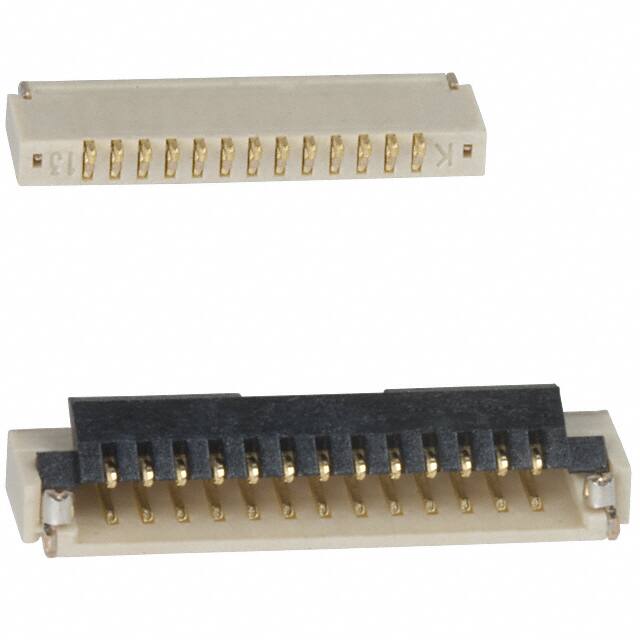

FH19SC-13S-0.5SH(09)

Teknik Özellikler

Additional Feature

ZIF, LOW PROFILE

Terminal

Solder

Height Above Board

0.037 0.95mm

Option

GENERAL PURPOSE

Locking Feature

Flip Lock

Akım Değeri

500mA

Mil Conformance

NO

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Black

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Wirecable Type

Flat Flex

Flammability Rating

UL94 V-0

Mating Cycles

20

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

10 Weeks

Ffc Fcb Thickness

0.30mm

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Cable End Type

Tapered

Sıra Sayısı

1

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Filter Feature

NO

Nominal Gerilim

50V

JESD-609 Kodu

e4

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pitch

0.020 0.50mm

Insulation Resistance

500MOhm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free
