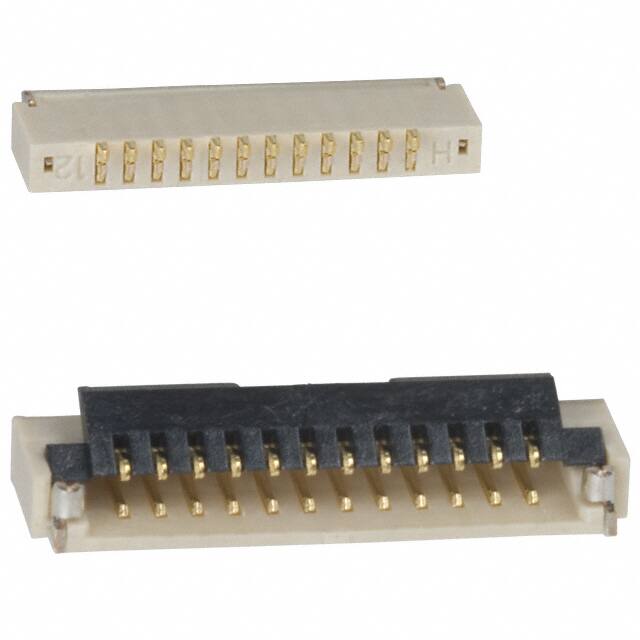

FH19SC-12S-0.5SH(09)

Teknik Özellikler

Additional Feature

ZIF, LOW PROFILE

Terminal

Solder

Height Above Board

0.037 0.95mm

Option

GENERAL PURPOSE

Akım Değeri

500mA

Mil Conformance

NO

Locking Feature

Flip Lock

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Actuatorcolor

Black

Çalışma Sıcaklığı

-55°C~85°C

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Wirecable Type

Flat Flex

Mating Cycles

20

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Tapered

Ffc Fcb Thickness

0.30mm

Filter Feature

NO

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Nominal Gerilim

50V

JESD-609 Kodu

e4

Insulation Resistance

500MOhm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Mixed Contacts

NO

Material Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm
