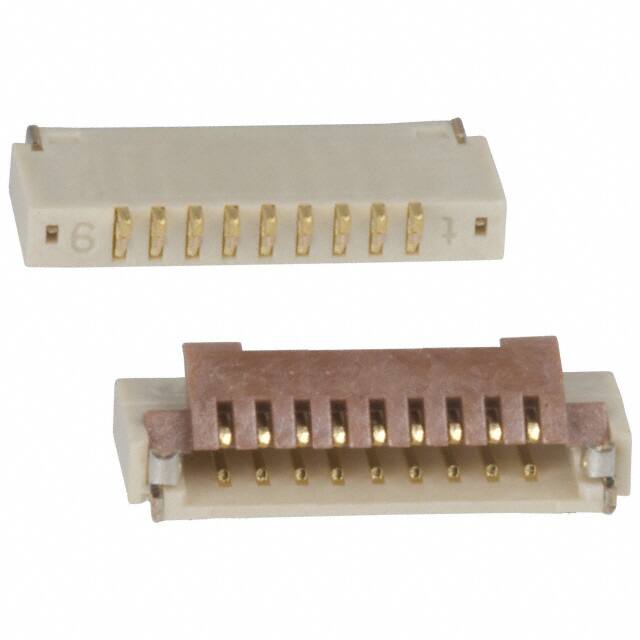

FH19C-9S-0.5SH(10)

Teknik Özellikler

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Body Depth

0.118 inch

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Wirecable Type

Flat Flex

Mating Cycles

20

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

Contact Resistance

100mOhm

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Cable End Type

Tapered

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Ffc Fcb Thickness

0.20mm

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

Nominal Gerilim

50V

Insulation Resistance

500MOhm

Housing Material

Liquid Crystal Polymer (LCP)

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pitch

0.020 0.50mm

Total Number Of Contacts

9

Flat Flex Type

FFC, FPC

Seri

FH19C

Pozisyon Sayısı

9

Terminal

Solder

Height Above Board

0.035 0.88mm

Body Length Or Diameter

0.256 inch

Contact Style

BELLOWED TYPE

Reference Standard

UL

Akım Değeri

500mA

Locking Feature

Flip Lock

Ambalaj

Tape & Reel (TR)

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

FFC/FPC CONNECTOR
