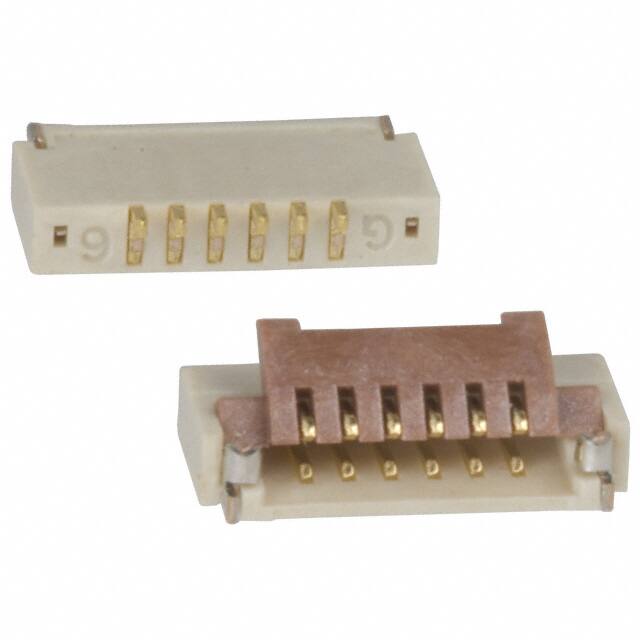

FH19C-6S-0.5SH(05)

Teknik Özellikler

Total Number Of Contacts

6

Uzunluk

5mm

Insulation Resistance

500000000Ohm

Mixed Contacts

NO

Pitch

0.020 0.50mm

Parça Durumu

Obsolete

Withdrawl Forcemin

ZIF N

Ffc Fcb Thickness

0.20mm

Contact Resistance

100mOhm

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

20

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Insertion Forcemax

ZIF N

Connector Type

FFC/FPC CONNECTOR

Plating Thickness

FLASH inch

Ambalaj

Tape & Reel (TR)

Kurşunsuz

Lead Free

RoHS Durumu

RoHS Compliant

Mil Conformance

NO

Locking Feature

Flip Lock

Height Above Board

0.035 0.88mm

Terminal

Solder

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

6

Seri

FH19C

Housing Material

Liquid Crystal Polymer (LCP)

Max Voltage Rating Ac

50V

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pcb Contact Pattern

RECTANGULAR

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Sıra Sayısı

1
