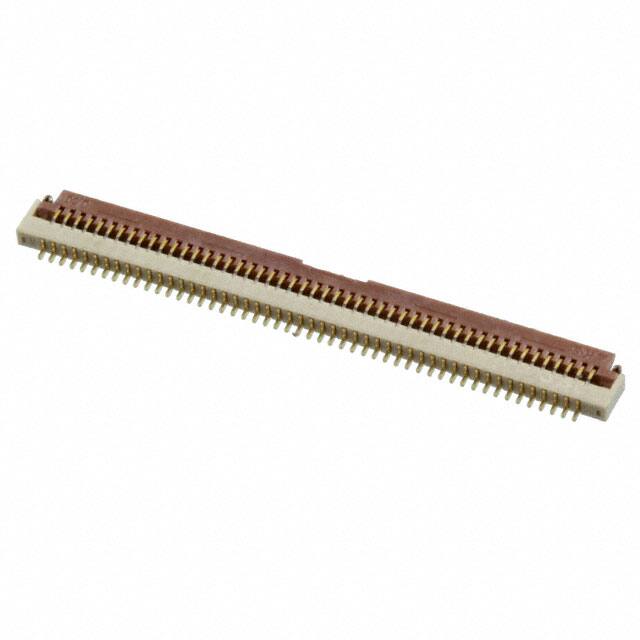

FH19C-50S-0.5SH(99)

Teknik Özellikler

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

50

Seri

FH19C

Total Number Of Contacts

50

Housing Color

Beige

Pitch

0.020 0.50mm

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Nominal Gerilim

50V

Body Breadth

0.035 inch

Pcb Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Ffc Fcb Thickness

0.20mm

Contact Pattern

RECTANGULAR

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Contact Resistance

100mOhm

Current Rating Amps

0.5A

Fabrika Tedarik Süresi

10 Weeks

Mating Cycles

20

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Body Depth

0.138 inch

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Number Of Pcb Rows

1

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Connector Type

FFC/FPC CONNECTOR

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Locking Feature

Flip Lock

Reference Standard

UL

Akım Değeri

500mA
