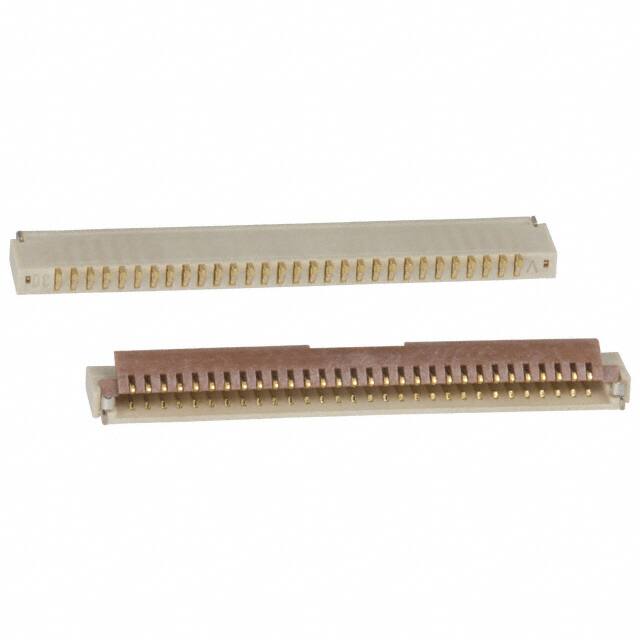

FH19C-30S-0.5SH(10)

Teknik Özellikler

Reference Standard

UL

Akım Değeri

500mA

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Body Length Or Diameter

0.669 inch

Additional Feature

POLARIZED

Number Of Pcb Rows

1

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Gender

Receptacle

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Pattern

RECTANGULAR

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Cable End Type

Tapered

Sıra Sayısı

1

Current Rating Amps

0.5A

Seri

FH19C

Pozisyon Sayısı

30

Flat Flex Type

FFC, FPC

Din Conformance

NO

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Locking Feature

Flip Lock

Mil Conformance

NO

Height Above Board

0.035 0.88mm

Terminal

Solder

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Connector Type

FFC/FPC CONNECTOR

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)
