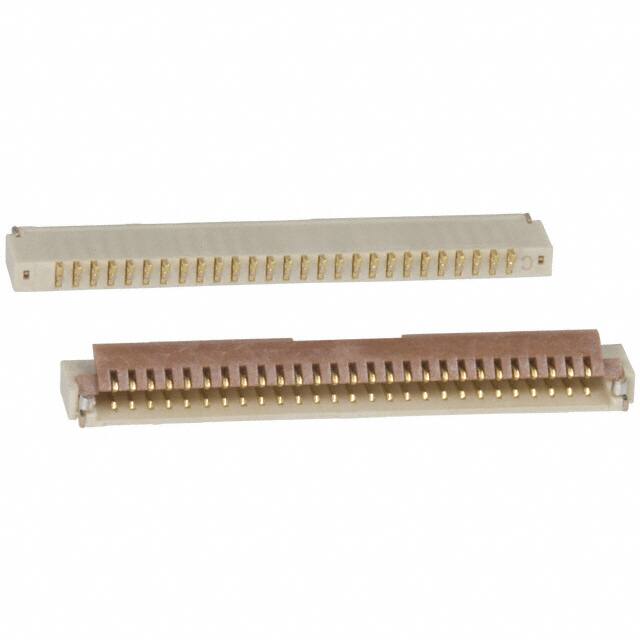

FH19C-27S-0.5SH(99)

Teknik Özellikler

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Number Of Pcb Rows

1

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

HTS Kodu

8536.69.40.40

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Reach Svhc

No SVHC

Contact Style

BELLOWED TYPE

Akım Değeri

500mA

Reference Standard

UL

Locking Feature

Flip Lock

Terminal

Solder

Height Above Board

0.035 0.88mm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Insulation Resistance

500000000Ohm

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pitch

0.020 0.50mm

Total Number Of Contacts

27

Seri

FH19C

Pozisyon Sayısı

27

Flat Flex Type

FFC, FPC

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

Nominal Gerilim

50V

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

ECCN Kodu

EAR99

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Tapered

Contact Pattern

RECTANGULAR
