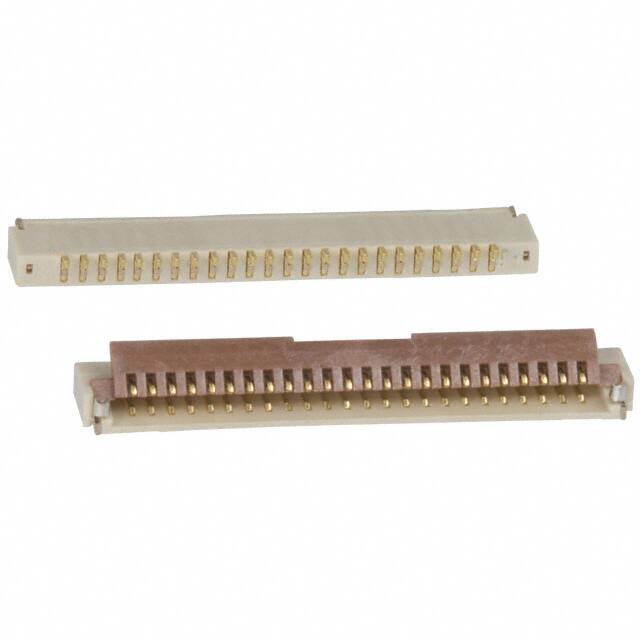

FH19C-24S-0.5SH(05)

Teknik Özellikler

Reference Standard

UL

Akım Değeri

500mA

Contact Style

BELLOWED TYPE

Option

GENERAL PURPOSE

Additional Feature

ZIF, LOW PROFILE

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Reach Svhc

Unknown

Contact Finish

Gold

Contact Materials

Phosphor Bronze

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Contact Pattern

RECTANGULAR

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Lead Pitch

500μm

Current Rating Amps

0.5A

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

24

Seri

FH19C

Din Conformance

NO

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Locking Feature

Flip Lock

Mil Conformance

NO

Height Above Board

0.035 0.88mm

Terminal

Solder

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Insertion Forcemax

ZIF N

Connector Type

FFC/FPC CONNECTOR
