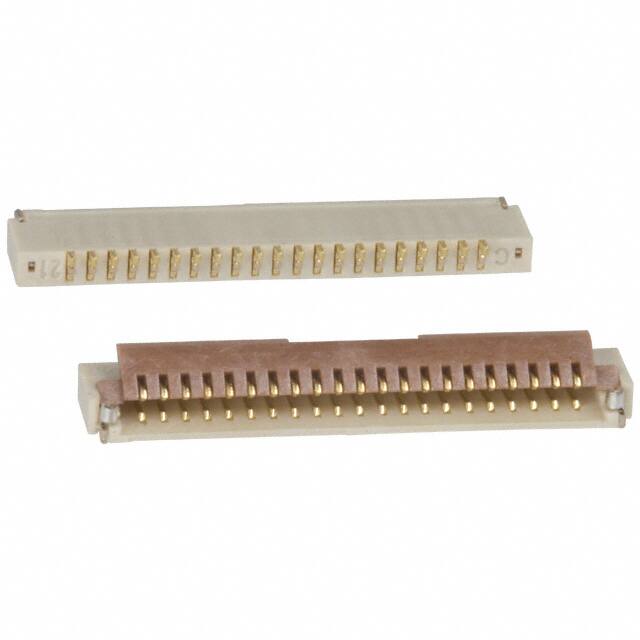

FH19C-21S-0.5SH(10)

Teknik Özellikler

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Reference Standard

UL

Akım Değeri

500mA

Additional Feature

ZIF, LOW PROFILE

Body Length Or Diameter

0.492 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Number Of Pcb Rows

1

HTS Kodu

8536.69.40.51

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Current Rating Amps

0.5A

ECCN Kodu

EAR99

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Tapered

Contact Pattern

RECTANGULAR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Din Conformance

NO

Flat Flex Type

FFC, FPC

Seri

FH19C

Pozisyon Sayısı

21

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

JESD-609 Kodu

e4

Mil Conformance

NO

Locking Feature

Flip Lock

Terminal

Solder

Height Above Board

0.035 0.88mm

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C

Contact Gender

FEMALE

Ambalaj

Tape & Reel (TR)
