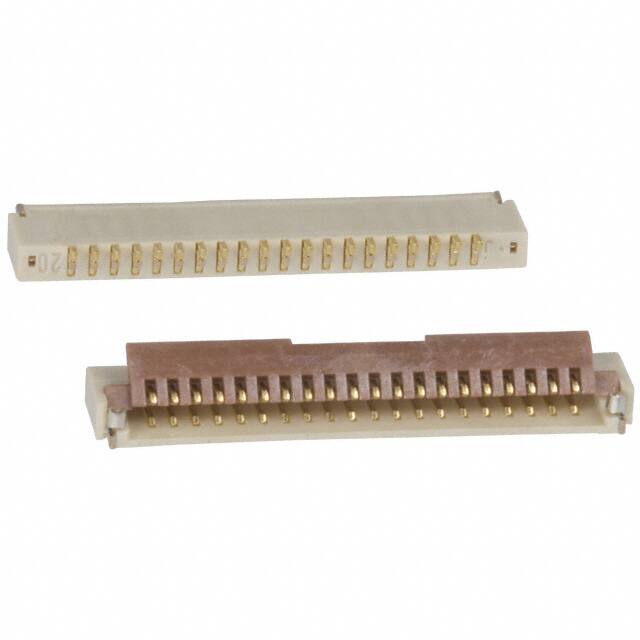

FH19C-20S-0.5SH(10)

Teknik Özellikler

Body Depth

0.118 inch

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Wirecable Type

Flat Flex

Contact Resistance

100mOhm

Fabrika Tedarik Süresi

10 Weeks

Ffc Fcb Thickness

0.20mm

Parça Durumu

Active

Nominal Gerilim

50V

Pitch

0.020 0.50mm

Insulation Resistance

500MOhm

Mixed Contacts

NO

Total Number Of Contacts

20

Terminal

Solder

Height Above Board

0.035 0.88mm

Locking Feature

Flip Lock

Mil Conformance

NO

RoHS Durumu

RoHS Compliant

Ambalaj

Tape & Reel (TR)

Connector Type

FFC/FPC CONNECTOR

Çalışma Sıcaklığı

-55°C~85°C

Actuatorcolor

Brown

Current Rating Amps

0.5A

Contact Pattern

RECTANGULAR

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Tapered

Ul Flammability Code

94V-0

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

JESD-609 Kodu

e3

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Seri

FH19C

Pozisyon Sayısı

20
