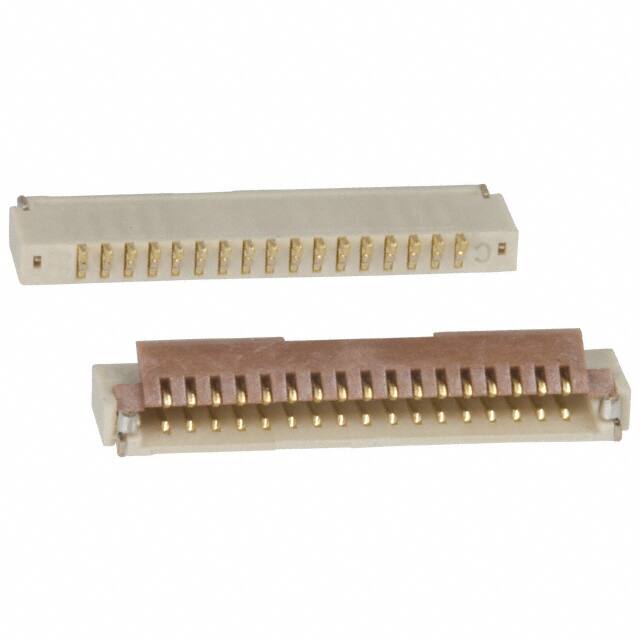

FH19C-17S-0.5SH(99)

Teknik Özellikler

Insulation Resistance

500000000Ohm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Housing Color

Beige

Pitch

0.020 0.50mm

Material Flammability Rating

UL94 V-0

Total Number Of Contacts

17

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

17

Seri

FH19C

Parça Durumu

Active

Montaj Tipi

Surface Mount, Right Angle

Body Breadth

0.035 inch

Pcb Contact Pattern

RECTANGULAR

Nominal Gerilim

50V

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

Contact Resistance

100mOhm

Cable End Type

Tapered

Sıra Sayısı

1

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Ffc Fcb Thickness

0.20mm

Contact Pattern

RECTANGULAR

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Body Depth

0.138 inch

Mating Cycles

20

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Actuatorcolor

Brown

Number Of Pcb Rows

1

Çalışma Sıcaklığı

-55°C~85°C

Ambalaj

Tape & Reel (TR)

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

RoHS Compliant

Contact Materials

Phosphor Bronze

Connector Type

FFC/FPC CONNECTOR

Contact Finish

Gold

Contact Style

BELLOWED TYPE

Reference Standard

UL
