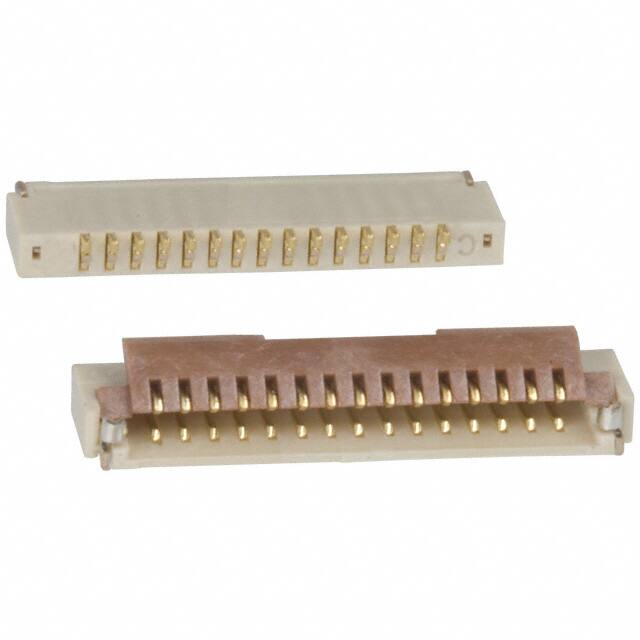

FH19C-15S-0.5SH(99)

Teknik Özellikler

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

HTS Kodu

8536.69.40.40

Ambalaj

Tape & Reel (TR)

Contact Finish

Gold

Connector Type

FFC/FPC CONNECTOR

Orientation

Right Angle

Contact Materials

Phosphor Bronze

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Çalışma Sıcaklığı

-55°C~85°C

Number Of Pcb Rows

1

Actuatorcolor

Brown

Terminal

Solder

Body Length Or Diameter

0.374 inch

Height Above Board

0.035 0.88mm

Contact Style

BELLOWED TYPE

Locking Feature

Flip Lock

Akım Değeri

500mA

Reference Standard

UL

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Nominal Gerilim

50V

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

Material Flammability Rating

UL94 V-0

Pitch

0.020 0.50mm

Housing Color

Beige

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Insulation Resistance

500000000Ohm

Seri

FH19C

Pozisyon Sayısı

15

Flat Flex Type

FFC, FPC

Total Number Of Contacts

15

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Mating Cycles

20

Current Rating Amps

0.5A
