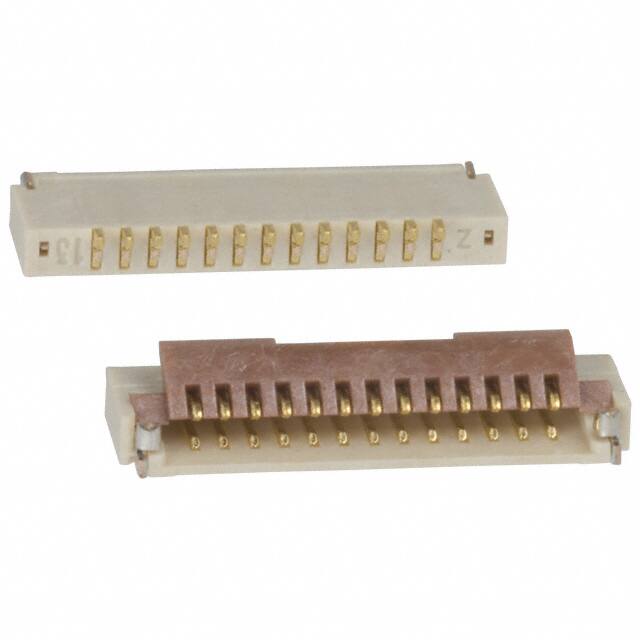

FH19C-13S-0.5SH(99)

Teknik Özellikler

Montaj Tipi

Surface Mount, Right Angle

Parça Durumu

Active

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.035 inch

Nominal Gerilim

50V

Insulation Resistance

500000000Ohm

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Pitch

0.020 0.50mm

Total Number Of Contacts

13

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

13

Seri

FH19C

Montaj

Surface Mount

REACH Uyumluluk Kodu

unknown

Flammability Rating

UL94 V-0

Reliability

COMMERCIAL

Mating Cycles

20

Fabrika Tedarik Süresi

10 Weeks

Current Rating Amps

0.5A

ECCN Kodu

EAR99

Contact Resistance

100mOhm

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Cable End Type

Tapered

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Ffc Fcb Thickness

0.20mm

HTS Kodu

8536.69.40.40

Ambalaj

Tape & Reel (TR)

Gender

Receptacle

RoHS Durumu

RoHS Compliant

Nem Hassasiyeti (MSL)

1 (Unlimited)

Connector Type

FFC/FPC CONNECTOR

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Number Of Pcb Rows

1

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C
