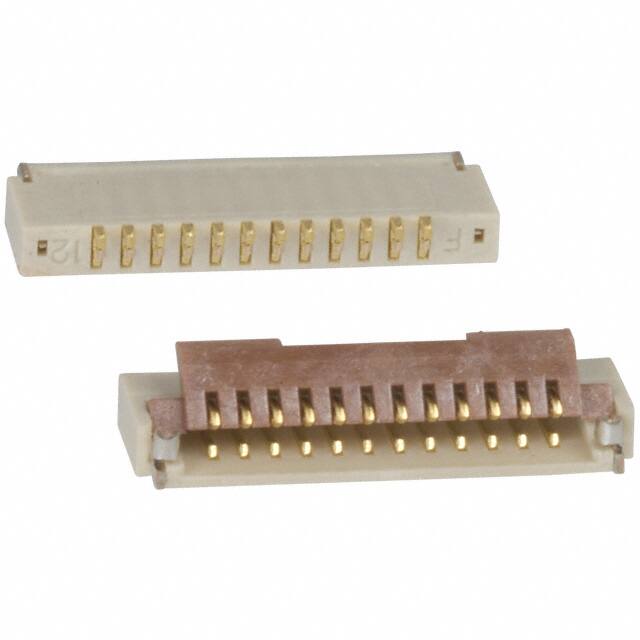

FH19C-12S-0.5SH(10)

Teknik Özellikler

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Reference Standard

UL

Akım Değeri

500mA

Additional Feature

ZIF, LOW PROFILE

Body Length Or Diameter

0.315 inch

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

HTS Kodu

8536.69.40.51

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Gender

Receptacle

Contact Materials

Phosphor Bronze

Contact Finish

Gold

ECCN Kodu

EAR99

Current Rating Amps

0.5A

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Contact Pattern

RECTANGULAR

Housing Material

Liquid Crystal Polymer (LCP), Halogen Free

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

12

Seri

FH19C

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Body Breadth

0.035 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Mil Conformance

NO

Locking Feature

Flip Lock

Terminal

Solder

Height Above Board

0.035 0.88mm

Actuatorcolor

Brown

Çalışma Sıcaklığı

-55°C~85°C
