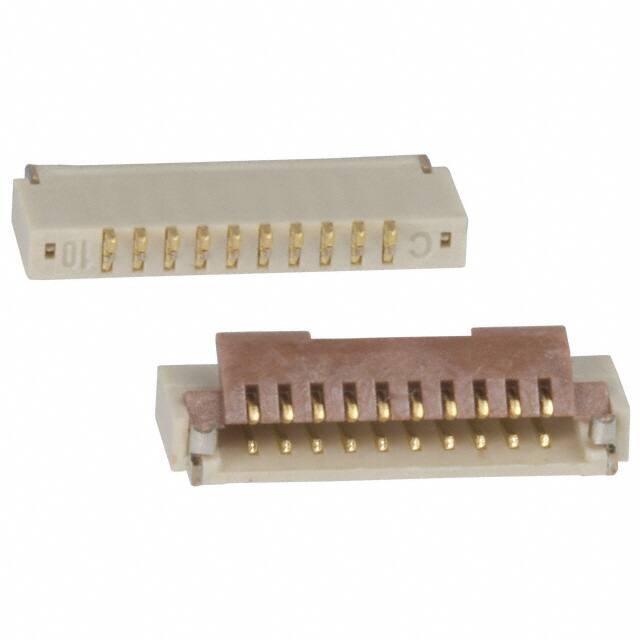

FH19C-10S-0.5SH(10)

Teknik Özellikler

Current Rating Amps

0.5A

Sıra Sayısı

1

Cable End Type

Tapered

Actuator Material

Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)

Contact Pattern

RECTANGULAR

Montaj Tipi

Surface Mount, Right Angle

Filter Feature

NO

Ul Flammability Code

94V-0

Body Breadth

0.035 inch

Pcb Contact Pattern

RECTANGULAR

JESD-609 Kodu

e3

Housing Material

Liquid Crystal Polymer (LCP)

Housing Color

Beige

Material Flammability Rating

UL94 V-0

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

10

Seri

FH19C

Additional Feature

ZIF, LOW PROFILE

Body Length Or Diameter

0.276 inch

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Reference Standard

UL

Akım Değeri

500mA

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Gender

Receptacle

Contact Materials

Phosphor Bronze

Contact Finish

Gold

Özellikler

Solder Retention, Zero Insertion Force (ZIF)

Kurşunsuz Kodu

yes

Number Of Pcb Rows

1

REACH Uyumluluk Kodu

unknown

Montaj

Surface Mount

Body Depth

0.118 inch

Mating Cycles

20

Wirecable Type

Flat Flex

Reliability

COMMERCIAL

Flammability Rating

UL94 V-0

Fabrika Tedarik Süresi

10 Weeks
