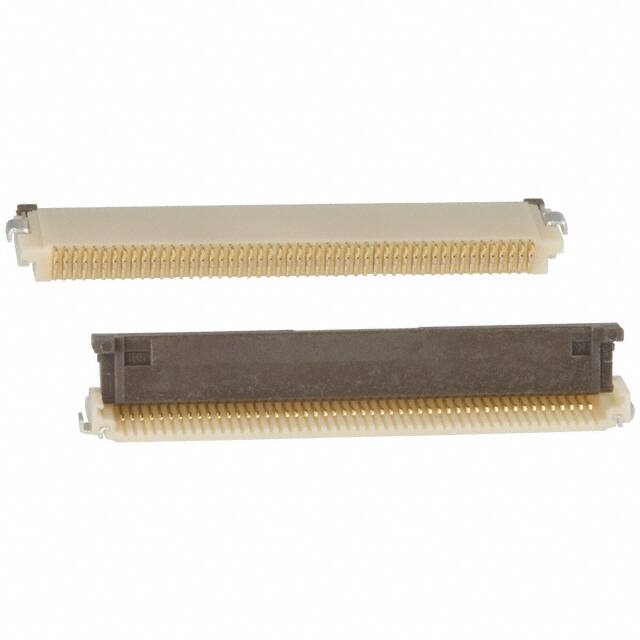

FH12S-50S-0.5SH

Teknik Özellikler

Additional Feature

BOTTOM CONTACT

Body Length Or Diameter

1.146 inch

Option

GENERAL PURPOSE

Contact Style

BELLOWED TYPE

Akım Değeri

500mA

Reference Standard

UL

Iec Conformance

NO

Nem Hassasiyeti (MSL)

1 (Unlimited)

Contact Materials

Phosphor Bronze

Contact Finish

Tin-Lead

Özellikler

Zero Insertion Force (ZIF)

Number Of Pcb Rows

1

Current Rating Amps

0.5A

Lead Pitch

500μm

Actuator Material

Polyphenylene Sulfide (PPS)

Cable End Type

Straight

Sıra Sayısı

1

Contact Pattern

RECTANGULAR

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

Pcb Contact Pattern

RECTANGULAR

Body Breadth

0.094 inch

Housing Material

Polyamide (PA), Nylon

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Din Conformance

NO

Mating Information

NO

Seri

FH12

Pozisyon Sayısı

50

Flat Flex Type

FFC, FPC

Terminal

Solder

Height Above Board

0.094 2.40mm

Mil Conformance

NO

Locking Feature

Flip Lock

Kurşunsuz

Contains Lead

Ambalaj

Tape & Reel (TR)

RoHS Durumu

Non-RoHS Compliant

Insertion Forcemax

ZIF N

Connector Type

FFC/FPC CONNECTOR
