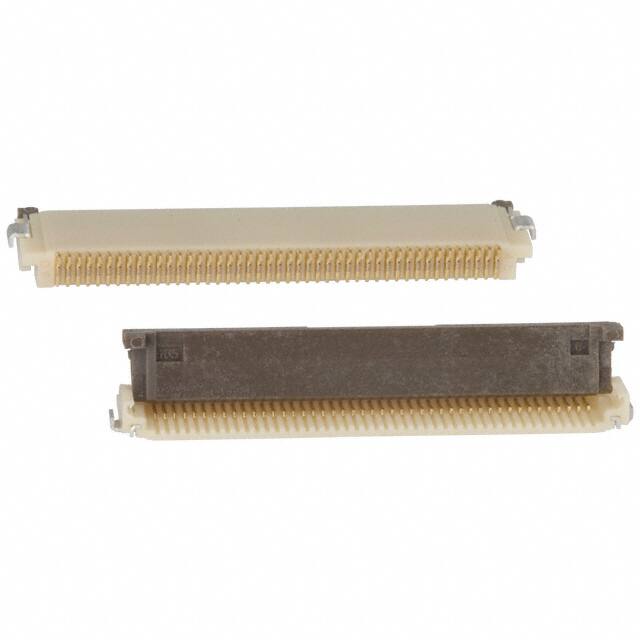

FH12S-45S-0.5SH(55)

Teknik Özellikler

Current Rating Amps

0.5A

Lead Pitch

500μm

Depth

5.6mm

Actuator Material

Polyphenylene Sulfide (PPS)

Sıra Sayısı

1

Cable End Type

Straight

Contact Location

Bottom

Max Current Rating

400mA

Housing Material

Polyamide (PA), Nylon

Max Voltage Rating Ac

50V

Material Flammability Rating

UL94 V-0

Housing Color

Beige

Din Conformance

NO

Flat Flex Type

FFC, FPC

Pozisyon Sayısı

45

Seri

FH12

Filter Feature

NO

Montaj Tipi

Surface Mount, Right Angle

Ul Flammability Code

94V-0

JESD-609 Kodu

e4

Option

GENERAL PURPOSE

Akım Değeri

500mA

Özellikler

Zero Insertion Force (ZIF)

Radyasyon Dayanımı

No

Kurşunsuz Kodu

yes

Gender

Receptacle

Nem Hassasiyeti (MSL)

1 (Unlimited)

Iec Conformance

NO

Contact Materials

Phosphor Bronze

Orientation

Right Angle

Contact Finish

Gold

Reach Svhc

No SVHC

Fabrika Tedarik Süresi

11 Weeks

Contact Resistance

50mOhm

Ffc Fcb Thickness

0.30mm

Montaj

Surface Mount

Flammability Rating

UL94 V-0

Mating Cycles

20

Mixed Contacts

NO

Pitch

0.020 0.50mm
